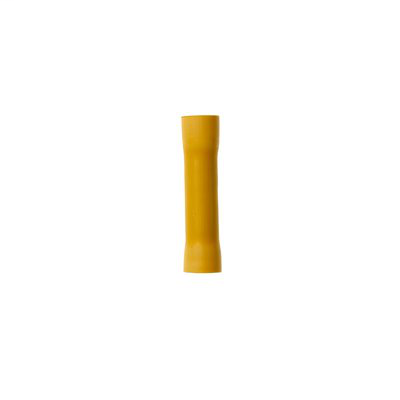

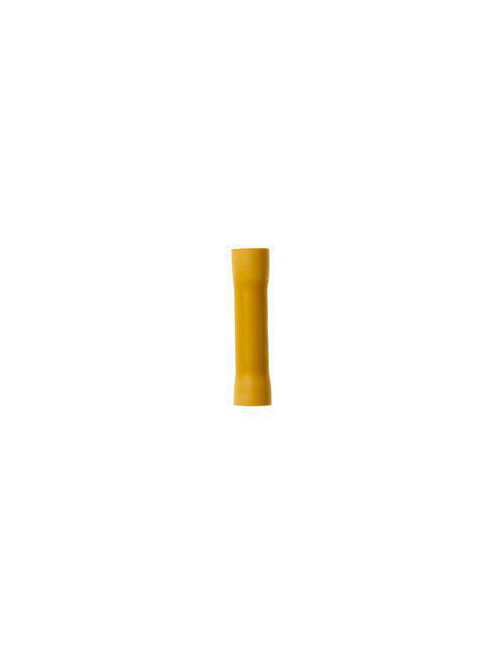

3M MV10BCX 50/Bottle Seamless Vinyl Insulated Butt Connector
$0.86/ea
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10BCX
Cooper Electric Part # 629447

Overview

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. The connector has a vinyl-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Yellow vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Specifications

  • 3M ID: 80611464134
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.38 Inch
  • Barrel Style: Seamless
  • Brand: Scotchlok™
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Connection Type: Butt
  • CSA File Number: LR22190
  • Insulation Material: Vinyl
  • Length: 1.2 Inch
  • Length (Metric): 30.48
  • Maximum Insulation Outer Diameter: 0.218 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • National Stock Number: 5940010791936
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Packaging: 50 per bottle
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • Thickness: 0.038 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858767
Product Description 3M Scotchlok Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587676
Length 1.2 in
Color Yellow
Type Standard
Thickness 0.038 in
Barrel Type Seamless
Material PVC
Terminal Style Standard
Terminal Type Butt Connectors
Product Type Connector
Conductor Size 12-10 AWG
Connection Type Butt
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.38 in
Sub Brand Scotchlok
