3M MV10-8RX 50/Bottle Vinyl Insulated Ring
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-8RX
Cooper Electric Part # 629443

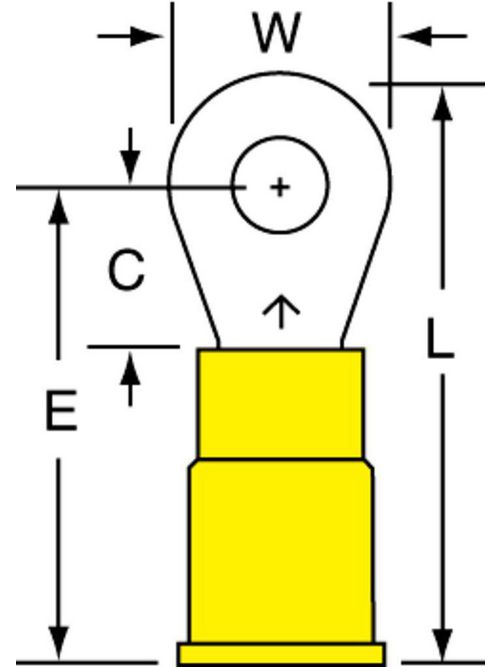

  • Thickness: 0.04 Inch
  • Width: 0.38 Inch
  • Brand: Scotchlok
  • Length: 1.03 Inch
  • Terminal Type: Ring
  • Clearance (C): 0.29 Inch
  • Dimension E: 0.84 Inch
  • Trademark: Scotchlok
  • Packaging: 50 per bottle
  • Insulation Material: Vinyl
  • CSA File Number: LR22190
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Agency Approvals: UL and CSA
  • Stud Size: 8
  • Terminal Style: Standard
  • Conductor Sizes: 12 - 10 AWG
  • UL File Number: E23438
  • Barrel Style: Brazed
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption



UPC 05112858757
Product Description Ring Vinyl Insulated, 50/bottle, MV10-8RX
GTiN 00051128587577
Length 1.03 in
Finish Tin Plated
Width 0.38 in
Color Yellow
Type Standard
Thickness 0.04 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #8
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Barrel Diameter 0.135 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Barrel Length 0.55 in
Sub Brand Scotchlok
Voltage 600 Volt
