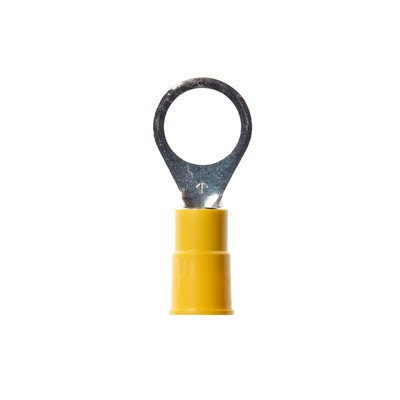

3M MV10-38R/SX 50/Bottle Vinyl Insulated Ring
$0.94/ea
In Stock | 650 available at 4 locations
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-38R/SX
Cooper Electric Part # 688609

Specifications

  • CSA File Number: LR22190
  • Clearance (C): 0.44 Inch
  • Terminal Type: Ring
  • Terminal Style: Standard
  • Dimension E: 0.99 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Barrel Style: Brazed
  • RoHS 2011/65/EU Compliant: Yes
  • Packaging: 50 per bottle
  • Brand: Scotchlok
  • UL File Number: E23438
  • Conductor Sizes: 12 - 10 AWG
  • Width: 0.54 Inch
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Thickness: 0.04 Inch
  • Trademark: Scotchlok
  • Insulation Material: Vinyl
  • Length: 1.26 Inch
  • Stud Size: 3/8 Inch
  • Agency Approvals: UL and CSA

Documents

Categories

Overview

UPC 05112858983
Product Description Ring Vinyl Insulated, 50/bottle, MV10-38R/SX
GTiN 00051128589830
Type Ring
Material PVC
Stud Size 3/8 in
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.26 in
Width 0.54 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
