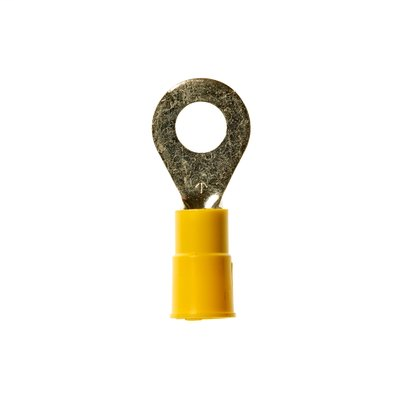

3M MV10-14R/SX 50/Bottle Vinyl Insulated Ring

$0.94/ea

In Stock | 750 available at 7 locations

Adding...

Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing

Features

Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Stud size 1/4 in
Accommodates wire sizes 12 to 10 AWG
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
50/carton, 500/case

UPC	05112858759
Product Description	3M Scotchlok Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN	00051128587591

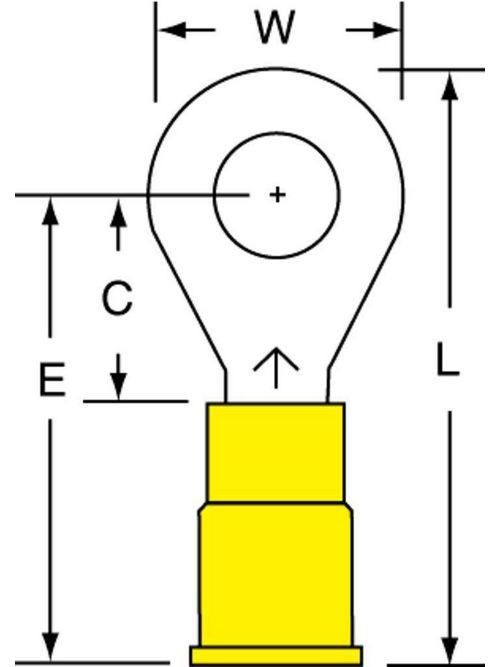

Length	1.26 in
Finish	Tin Plated
Width	0.53 in
Color	Yellow
Type	Ring
Thickness	0.04 in
Barrel Type	Brazed
Material	PVC
Stud Size	1/4 in
Terminal Style	Standard
Terminal Type	Ring
Conductor Size	12 To 10 AWG
Barrel Diameter	0.135 in ID
Temperature Rating	-40 to 105 C
Family Brand Name	3M
Insulation Material	Vinyl
Terminal Size	12 - 10 AWG
Barrel Length	0.55 in
Sub Brand	Scotchlok
Voltage	600 Volt
Max Operating Temperature	105 C
Overall Length	1.26 in
