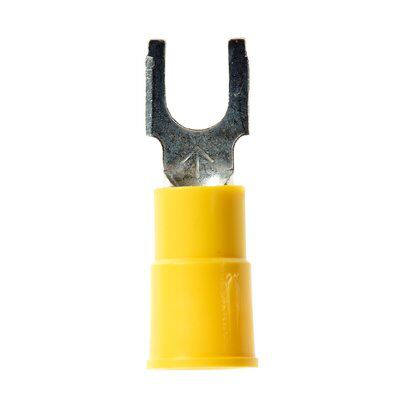

3M MV10-10FBX 50/Bottle Vinyl Insulated Block Fork
$0.74/ea
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-10FBX
Cooper Electric Part # 629446

Specifications

  • Insulation Material: Vinyl
  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Conductor Sizes: 12 - 10 AWG
  • Width: 0.32 Inch
  • Trademark: Scotchlok
  • Agency Approvals: UL and CSA
  • RoHS 2011/65/EU Compliant: Yes
  • Clearance (C): 0.29 Inch
  • Thickness: 0.04 Inch
  • Length: 1.03 Inch
  • Brand: Scotchlok
  • Dimension E: 0.84 Inch
  • CSA File Number: LR22190
  • UL File Number: E23438
  • Packaging: 50 per bottle
  • Stud Size: 10
  • Barrel Style: Brazed
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Type: Fork
  • Terminal Style: Block

Documents

Overview

UPC 05112858766
Product Description Block Fork Vinyl Insulated, 50/bottle, MV10-10FBX
GTiN 00051128587669
Length 1.03 in
Finish Tin Plated
Width 0.32 in
Color Yellow
Type Fork
Thickness 0.04 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #10
Terminal Style Block
Terminal Type Fork
Conductor Size 12-10 AWG
Barrel Diameter 0.135 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Barrel Length 1/4 in
Used With Terminal Block
Sub Brand Scotchlok
Voltage 600 Volt
