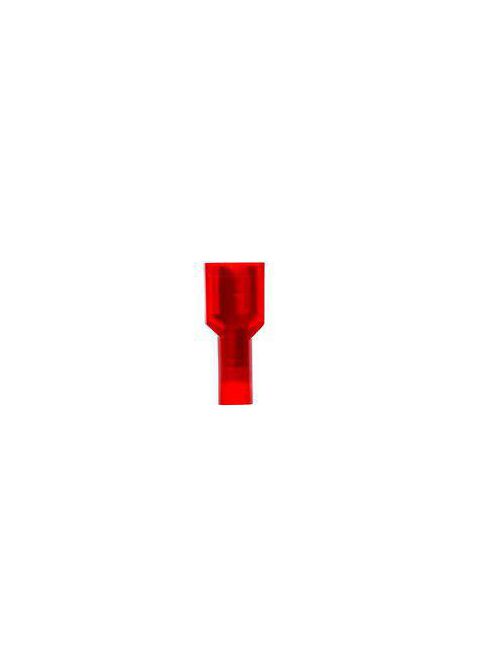

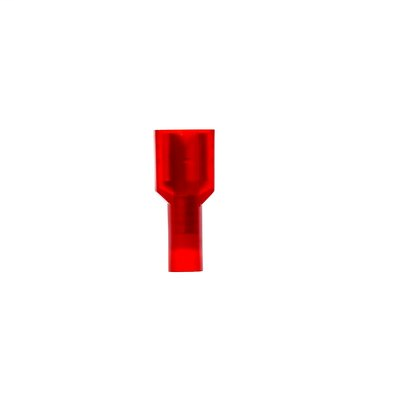

3M MNU18-250DFIX 100/Bottle Nylon Insulated Female Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1.13/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNU18-250DFIX
Cooper Electric Part # 629429

Features

  • Red nylon-insulated, butted-seam barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.080 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Connection Type: Wire
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Connector / Connector Tool: Connector
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter (D): 0.23 Inch
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Grease Filling Against Corrosion: No
  • Insulation Color: Red
  • Insulation Material: Nylon
  • Interrupt Free Shifting: No
  • Material: ETP Copper
  • Mates with Female Width: 0.250 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 22 AWG
  • Overall Diameter (Imperial): 0.23 in
  • Overall Length (Imperial): 0.87 in
  • Overall Length (Metric): 22.09 mm
  • Overall Width (Imperial): 0.37 in
  • Overall Width (Metric): 9.4 mm
  • Product Color: Red
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Fully Insulated
  • Terminal Type: Standard
  • UL File Number: E70512

Overview

UPC 05112858776
Product Description Corrosion resistance to water, salt, steam and other related contaminantsDents and rolled edges of this female disconnect terminal offer excellent holding forceFuse not includedNo wire stripping neededWhen crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and saltWithstands a temperature range of -40 to 221 F (-40 to 105 C)Made of durable brass for good conductivity and has corrosion-resistant tin plating
GTiN 00051128587768
Length 0.87 in
Width 0.37 in
Color Red
Type Disconnect
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Material Nylon
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22 To 18 AWG
Tab Size 6.3 x 0.8 mm
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Max Operating Temperature 221 degrees F
Overall Length 0.87 in
