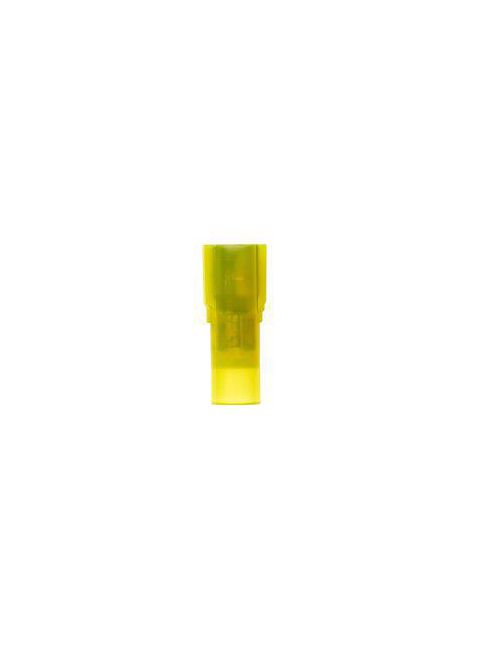

3M MNI10-250DFIX 50/Bottle Nylon Insulated Female Disconnect
$2.10/ea
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNI10-250DFIX
Cooper Electric Part # 629449

Overview

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. This terminal has a butted seam with an interlocking barrel which provides electrical contact after crimping. It has an abrasion-resistant, fully insulated, flared nylon sleeve with a stepped design to ensure mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Yellow nylon-insulated, butted seam with an interlocking barrel offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611465768
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Style: Interlocking Barrel
  • Brand: Scotchlok™
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • Connection Type: Wire
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter: 0.23 Inch
  • Diameter (Metric): 5.8
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Nylon
  • Length: 0.99 Inch
  • Length (Metric): 25.14 mm
  • Male Tab Width (W'): 0.250 Inch
  • Material: ETP Copper
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Packaging: 50 per bottle
  • Pad Width: 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Fully Insulated
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Thickness (Metric): 0.81 mm
  • Trademark: Scotchlok
  • UL File Number: E70512
  • Width: 0.37 Inch
  • Width (Metric): 9.4

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858930
Product Description 3M Scotchlok Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128589304
Length 0.99 in
Width 0.37 in
Color Yellow
Type Disconnect
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Interlocking Barrel
Material ETP Copper
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 10 AWG
Connection Type Wire
Family Brand Name 3M
Insulation Material Nylon
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Sub Brand Scotchlok
