3M MNG18-10FLX 100/Bottle Nylon Insulated Locking Fork
$1.51/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MNG18-10FLX
Cooper Electric Part # 984502

Overview

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611464522
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok

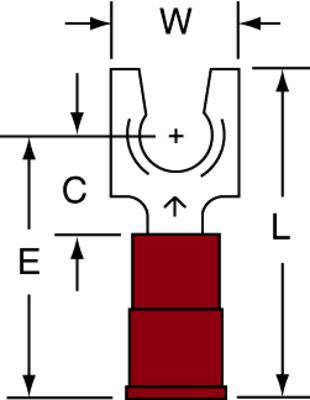

  • Clearance (C): 0.25 Inch
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.69 Inch
  • Insulation Material: Nylon with Insulation Grip
  • Length: 0.87 Inch
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Maximum Lock Width: 0.35 Inch
  • National Stock Number: 5940010906344
  • Packaging: 100 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Locking
  • Terminal Type: Fork
  • Thickness: 0.03 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.32 Inch

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858806
Product Description 3M Scotchlok Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128588062
Type Fork
Material Nylon
Stud Size 10
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.87 in
Width 0.32 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Locking
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Insulation Grip,Nylon
