3M MN6-10R/SK

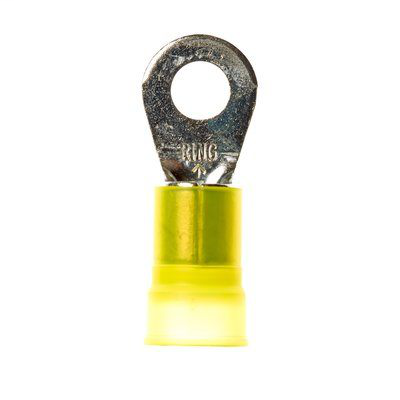

Product image thumbnail 0
Product image thumbnail 1
$1.64/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MN6-10R/SK
Cooper Electric Part # 493159

Overview

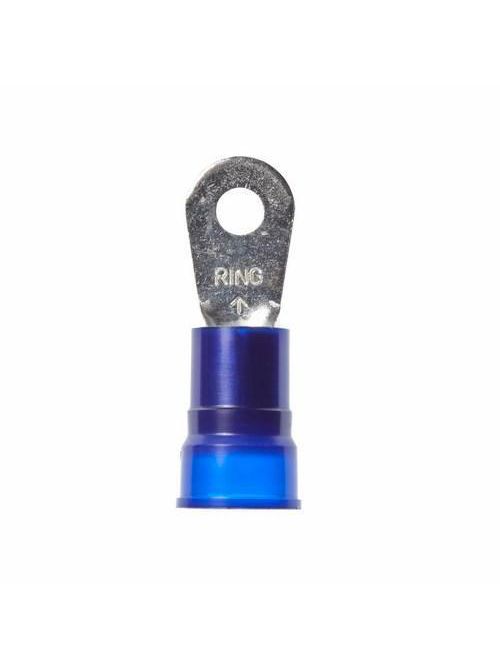

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

A ring is the standard style of tongue. The safest and most reliable; it cannot be removed unless mounting screw is removed.

  • Blue nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire size 6 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 200/case

Specifications

  • 3M ID: 80008006084
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.39 Inch
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.52 Inch
  • Color: Blue
  • Conductor Size: 6 AWG
  • CSA File Number: LR22190
  • Dimension E: 1.27 Inch
  • Insulation Material: Nylon
  • Length: 1.5 Inch
  • Length (Metric): 38.1
  • Maximum Insulation Outer Diameter: 0.44 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 6 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Packaging: 200 per bulk box
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.05 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.47 Inch
  • Width (Metric): 11.93

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05400708272
Product Description 3M Scotchlok Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00054007082729
Type Ring
Material Nylon
Family Brand Name 3M
Terminal Size 6 AWG
Sub Brand Scotchlok
Length 1.5 in
Width 0.47 in
Color Blue
Thickness 0.05 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 6 AWG
Insulation Material Nylon
Max Operating Temperature 221 degrees F
Barrel Length 0.39 in
