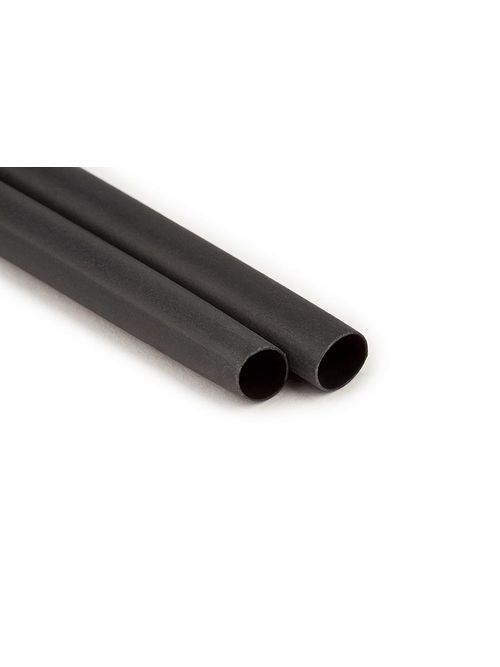

3M ITCSN-0800-9"-Black-25 Pcs Heavy Wall Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$8.14/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # IT0.800BK9""S
Cooper Electric Part # 80721

Features

  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for insulating secondary splices, as well as direct buried, submersible and dig-in repairs
  • Made of black cross-linked polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • Adhesive Lined: Yes
  • Adhesive Material: Hot melt adhesive layer - Hot-melt adhesive
  • Cable Size Range: 8-1/0 AWG
  • Chemical Resistant: Yes
  • Color Family: Black
  • Dielectric Strength (V/mil): 500 V/mil
  • Direct Bury: Yes
  • Elongation: 4.75 %
  • Expanded Inner Diameter: 0.8 in
  • Expanded Inner Diameter (Metric): 20.3 mm
  • Flame Retardant: No
  • Flammability Rating: Non-Flame Retardant
  • Heat Shrink Type: Adhesive-Lined Polyolefin Heat Shrink Tubing
  • Inner Diameter After Shrink (Imperial): 0.2 in
  • Inner Diameter After Shrink (Metric): 0.508 cm²
  • Inner Diameter Before Shrink (Imperial): 0.8 in
  • Inner Diameter Before Shrink (Metric): 2.032 cm²
  • Material: Adhesive-lined Polyolefin
  • Maximum Operating Temperature (Celsius): 100 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 230 Degree Fahrenheit
  • Maximum Voltage Rating: 1 kV
  • Non-Corrosive: Yes
  • Operating Temperature (Celsius): -55 to 100 Degrees Celsius
  • Operating Temperature (Fahrenheit): -67 °F to 230 °F
  • Operating Temperature Range (Celsius): -55 °C to -100 °C
  • Operating Temperature Range (Fahrenheit): -67 °F to 230 °F
  • Overall Length (Imperial): 9 in
  • Overall Length (Metric): 229 mm
  • Product Color: Black
  • Product Key: TN04 ITCSN TUBING 800 FPE
  • Product Type: Splice
  • Recovered Inner Diameter: 0.2 in
  • Recovered Inner Diameter (Metric): 5.1 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shrink Ratio: 4:1
  • Specifications: UL 486D*
  • Splice Type: Heat Shrink
  • Tubing Type: Heavy Wall
  • Voltage: 1 kV
  • Voltage Rating: UL Rated to 600 V, Can be used up to 1 kV

Overview

UPC 05400708890
Family Brand Name 3M
Product Description 3M Heat Shrink Cable Sleeve ITCSN is a heavy wall sleeve that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio to offer electrical insulation for 1 kV rated applications. It features a cross linked polyolefin construction that provides moisture seal protection.
GTiN 00054007088905
Length 9 in
Color Black
Operating Temperature 100 C
Type Heavy Wall
Shrink Ratio 3 to 1
Dielectric Strength 500 V/mil
Max Operating Temperature 230 degrees F
Overall Length 9 in
