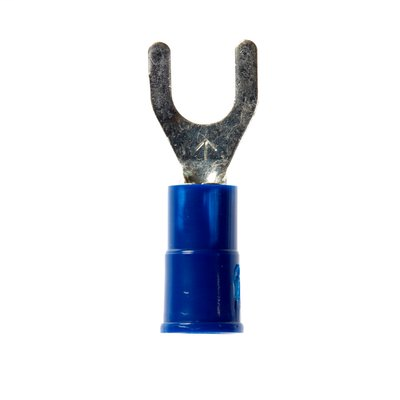

3M FV14-6Q Highland 25/Bag Fork Vinyl Insulated Terminal
$5.84/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FV14-6Q
Cooper Electric Part # 972378

Overview

Fork terminals allow rapid connection of wire, and are usually used on free-standing studs due to their wider tongues.

Specifications

  • Length: 0.9 Inch
  • Width: 0.34 Inch
  • Packaging: 25 per bag
  • Brand: Highland
  • Thickness: 0.03 Inch
  • Terminal Type: Fork
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Maximum Insulation Outer Diameter: 0.17 Inch
  • Terminal Style: Standard
  • Agency Approvals: UL and CSA
  • Dimension E: 0.74 Inch
  • Barrel Length: 0.25 Inch
  • CSA File Number: LR22190
  • Clearance (C): 0.29 Inch
  • Insulation Material: Vinyl
  • RoHS 2011/65/EU Compliant: Yes
  • Conductor Sizes: 16 - 14 AWG
  • Barrel Style: Butted
  • UL File Number: E23438
  • Stud Size: 6
  • Trademark: Highland

Documents

Overview

UPC 05112860012
Product Description This standard fork accepts a wire range of 16-14 AWG, a stud size of 6 and has a case quantity of 10 bags.
GTiN 00051128600122
Color Blue
Type Fork Terminal
Material PVC
Wire Size 16-14 AWG
Family Brand Name 3M
Terminal Size 6
Sub Brand Highland
Length 0.9 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Butted
Stud Size 6
Terminal Style Standard
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
