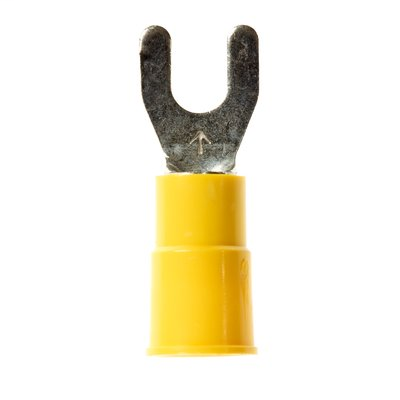

3M FV14-10Q Highland 25/Bag Vinyl Insulated Fork
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$7.35/ea
In Stock | 7 available at 2 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FV14-10Q
Cooper Electric Part # 972376

Overview

Fork terminals allow rapid connection of wire, and are usually used on free-standing studs due to their wider tongues.

Specifications

  • Terminal Type: Fork
  • Trademark: Highland
  • Packaging: 25 per bag
  • Insulation Material: Vinyl
  • Barrel Style: Butted
  • Brand: Highland
  • Thickness: 0.03 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Insulation Outer Diameter: 0.17 Inch
  • CSA File Number: LR22190
  • Width: 0.34 Inch
  • UL File Number: E23438
  • Conductor Sizes: 16 - 14 AWG
  • Clearance (C): 0.29 Inch
  • Barrel Length: 0.25 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length: 0.9 Inch
  • Agency Approvals: UL and CSA
  • Terminal Style: Standard
  • Dimension E: 0.74 Inch
  • Stud Size: 10

Documents

Categories

Overview

UPC 05112860011
Product Description This standard fork accepts a 16-14 AWG, a stud size of and has a case quantity of 10 bags.
GTiN 00051128600115
Length 0.9 in
Width 0.34 in
Color Blue
Type Standard
Thickness 0.03 in
Barrel Type Butted
Material PVC
Stud Size 10
Terminal Style Standard
Terminal Type Fork
Conductor Size 16 To 14 AWG
Wire Size 16-14 AWG
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 10
TC Connection Fork
Barrel Length 0.25 in
Sub Brand Highland
