3M FV10-8Q Highland 25/Bag Vinyl Insulated Fork
$8.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FV10-8Q
Cooper Electric Part # 965337

Overview

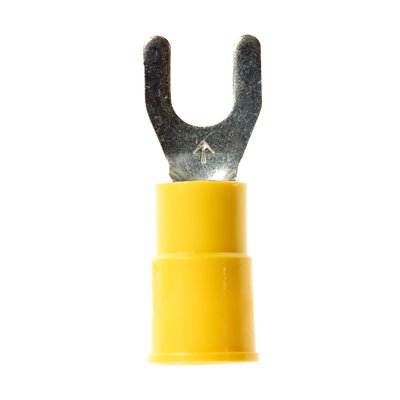

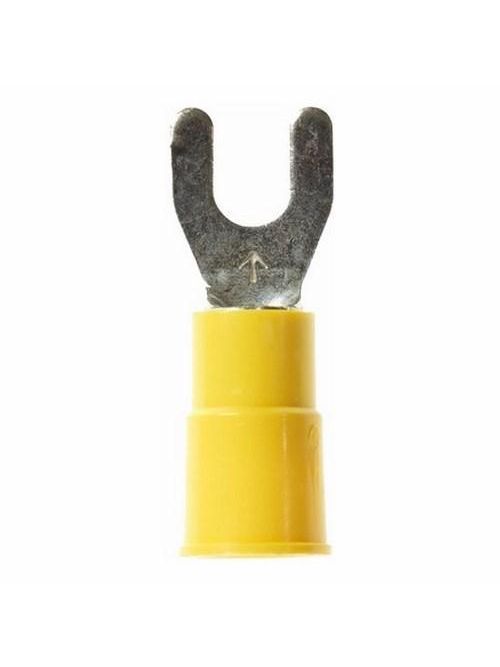

3M™ Highland™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Highland™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • Stud size #8
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Specifications

  • 3M ID: 80611602717
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Length (metric): 6.35 mm
  • Barrel Style: Butted
  • Brand: Highland
  • Clearance (C): 0.29 Inch
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.84 Inch
  • Insulation Material: Vinyl
  • Length: 1.03 Inch
  • Length (Metric): 26.16 mm
  • Maximum Insulation Outer Diameter: 0.25 Inch
  • Packaging: 25 per bag
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #8
  • Terminal Style: Standard
  • Terminal Type: Fork
  • Thickness: 0.04 Inch
  • Thickness (Metric): 1.02 mm
  • Trademark: Highland
  • UL File Number: E23438
  • Units per bag: 25
  • Width: 0.38 Inch
  • Width (Metric): 9.65 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112860010
Product Description 3M Highland Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128600108
Color Yellow
Type Fork Terminal
Material PVC
Wire Size 12-10 AWG
Family Brand Name 3M
Terminal Size 8
Sub Brand Highland
Length 1.03 in
Width 0.38 in
Thickness 0.04 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Fork
Conductor Size 12-10 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
