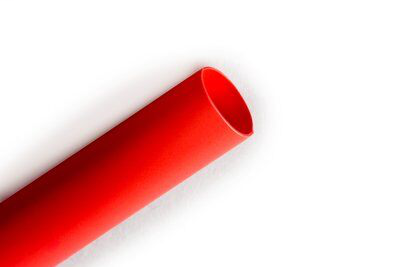

3M FP301-3/8-48"-Red-12 Pcs Thin Wall Shrink Tubing
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$4.15/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FP301-3/8-48"-RED-12 PCS
Cooper Electric Part # 836680

Features

  • Balances electrical, physical and chemical properties for various industrial and military applications
  • 3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
  • Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
  • 3M™ Heat Shrink Tubing FP-301 is color coded for quick and easy identification of the wire. This split resistant, flame retardant tubing is used as shrink fit, electrical insulation over cable splices or terminations. The high expansion ratio tubing is mechanically tough, easily markable and resists cold flow. It is ideal for lightweight wire harness covering, fire resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of 67 to 275 degrees F ( 55 to 135 degrees C). UL Listed, SAE AS23053/5, Class 1, CSA Certified and RoHS 2011/65/EU Compliant.
  • Suitable for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging
  • Made of flexible polyolefin
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Flame-retardant tubing is rated for 600V applications

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611472483
  • Additional Flammability Rating: 23053/5 class1
  • Agency Approvals: CSA, UL Recognized
  • Applicable SAE-AMS-DTL-23053 Specifications: 23053/5 class 1
  • Brand: 3M™
  • Color Family: Red
  • Elongation: 400 %
  • Expanded Inner Diameter: 0.375 in
  • Expanded Inner Diameter (Metric): 9.53 mm
  • Flame Retardant: Yes
  • Flammability Rating: UL 224 All Tubing Flame Test
  • Heat Shrink Type: Single-Wall Polyolefin Heat Shrink Tubing
  • Inner Diameter After Shrink (Imperial): 0.187 in
  • Inner Diameter After Shrink (Metric): 4.75 mm
  • Inner Diameter Before Shrink (Imperial): 0.375 in
  • Inner Diameter Before Shrink (Metric): 9.53 mm
  • Manufacturing Origin: USA
  • Material: Polyolefin
  • Maximum Operating Temperature (Celsius): 135 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 275 Degree Fahrenheit
  • Mil Spec: AMS-DTL-23053/5, Class 1
  • Minimum Expanded Tubing I. D.: 3 in
  • Minimum Shrink Temperature (Celsius): 100 Degree Celsius
  • Non-Corrosive: Yes
  • Operating Temperature (Celsius): -55 to 135 Degrees Celsius
  • Operating Temperature (Fahrenheit): -67 °F to 275 °F
  • Operating Temperature Range (Celsius): -55 °C to +135 °C
  • Operating Temperature Range (Fahrenheit): -67 °F to 275 °F
  • Overall Length (Imperial): 48 in
  • Overall Length (Metric): 1220 mm
  • Product Color: Red
  • Product Form: 48 in (1.22 m) sticks
  • Recovered Inner Diameter: 0.187 in
  • Recovered Inner Diameter (Metric): 4.75 mm
  • Shrink Ratio: 2:1
  • Size: 0.375 Inch
  • Size (Metric): 9.52 mm
  • Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul || Wireless Network: Infrastructure Accessories
  • Tensile Strength (Imperial): 2400 Pound-Force Per Square Inch
  • Tubing Type: Single Wall (Thin)
  • UL Bug Temperature (Celsius): 125 Degrees Celsius
  • UL Bug Temperature (Fahrenheit): 257 Degrees Fahrenheit
  • UL Bug Voltage: 600 Volt

Overview

UPC 05112859587
Family Brand Name 3M
Product Description 3/8, 2:1 Thin Wall, 48" Red, 12 Pcs
GTiN 00051128595879
Length 48 in
Color Red
Operating Temperature 135 C
Type Thin-Wall Flexible Polyolefin
Shrink Ratio 2:1
Outside Diameter 0.375 in
Dielectric Strength 900 Volt
Max Operating Temperature 275 degrees F
Overall Length 48 in
