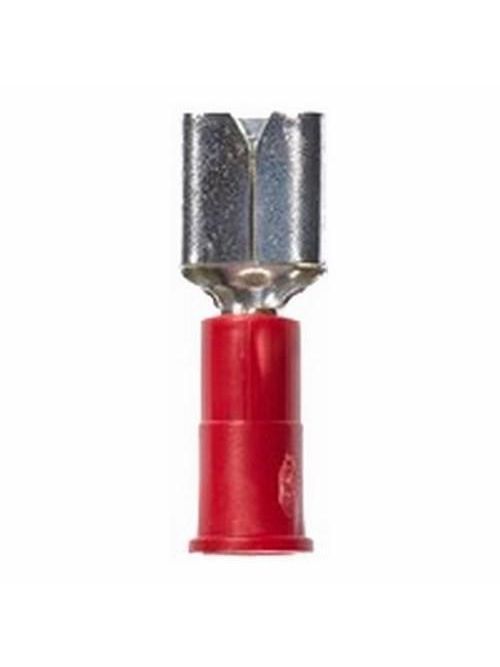

3M FDV18-250Q 25/Bag Female Disconnect Vinyl Insulated Highland Bag
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FDV18-250Q
Cooper Electric Part # 765628


Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.


  • Agency Approvals: UL and CSA
  • Fastener Orientation: Female
  • Insulation Material: Vinyl
  • Brand: Highland
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Barrel Length: 0.25 Inch
  • CSA File Number: LR22190
  • Terminal Style: Standard
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Trademark: Highland
  • Barrel Style: Butted
  • Packaging: 25 per bag
  • Conductor Sizes: 22 - 18 AWG
  • RoHS 2011/65/EU Compliant: Yes
  • Length: 0.87 Inch
  • Pad Width: 0.25 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • UL File Number: E70512
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption



UPC 05112860008
Product Description This female disconnect accepts a wire range 22-18 AWG, a stud size of .250 and has a case quantity of 10 bags.
GTiN 00051128600085
Color Red
Type Disconnect
Material PVC
Wire Size 22-18 AWG
Family Brand Name 3M
TC Connection Disconnect
Sub Brand Highland
Length 0.87 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
