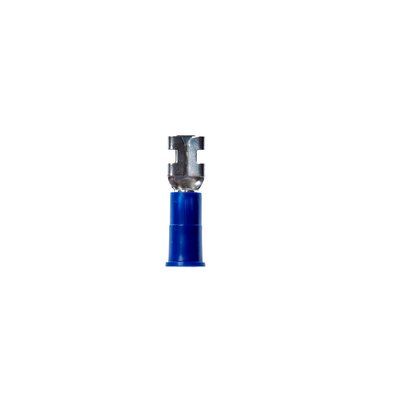

3M FDV14-250Q 25/Bag Vinyl Insulated Female Disconnect
$7.35/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FDV14-250Q
Cooper Electric Part # 765627

Overview

Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Specifications

  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Brand: Highland
  • Fastener Orientation: Female
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length: 0.87 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Thickness: 0.032 Inch
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Pad Width: 0.25 Inch
  • Trademark: Highland
  • Barrel Length: 0.25 Inch
  • Packaging: 25 per bag
  • Insulation Material: Vinyl
  • CSA File Number: LR22190
  • RoHS 2011/65/EU Compliant: Yes
  • Terminal Type: Disconnect
  • Conductor Sizes: 16 - 14 AWG
  • Terminal Style: Standard
  • UL File Number: E70512

Documents

Overview

UPC 05112860006
Product Description This female disconnect accepts a wire range of 16-14 AWG, a .250 stud size and has a case quantity of 10 bags.
GTiN 00051128600061
Color Blue
Type Disconnect
Material PVC
Wire Size 16-14 AWG
Family Brand Name 3M
TC Connection Disconnect
Sub Brand Highland
Length 0.87 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
