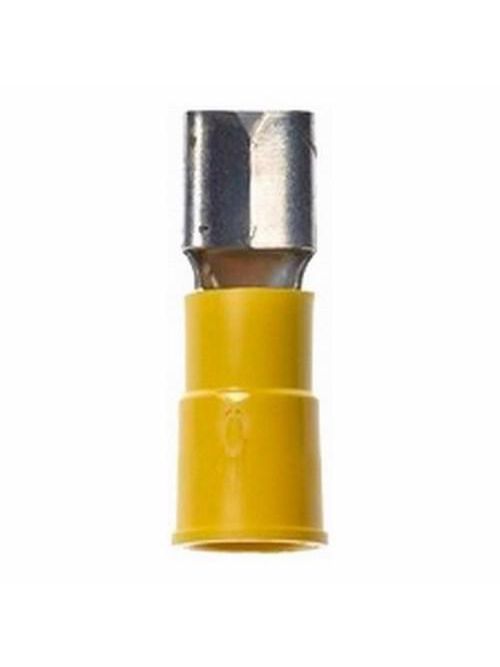

3M FDV10-250Q 25/Bag Highland Vinyl Insulated Female Disconnect Terminal
$8.11/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FDV10-250Q
Cooper Electric Part # 765626

Features

  • Yellow vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • 3M™ Highland™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Highland™ Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 12 to 10 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611602659
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Length (Metric): 6.35 mm
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Conductor Size: 12 - 10 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Material: Plastic
  • Mates with Female Width: 0.25 Inch
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 to 1000 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Overall Length (Imperial): 0.95 in
  • Overall Length (Metric): 24.13 mm
  • Pad Width: 0.25 in
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard

Overview

UPC 05112860004
Product Description 3M Highland Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128600047
Color Yellow
Type Disconnect
Material Plastic
Wire Size 12-10 AWG
Family Brand Name Scotchlok
TC Connection Disconnect
Sub Brand Highland
Overall Length 0.95 in
