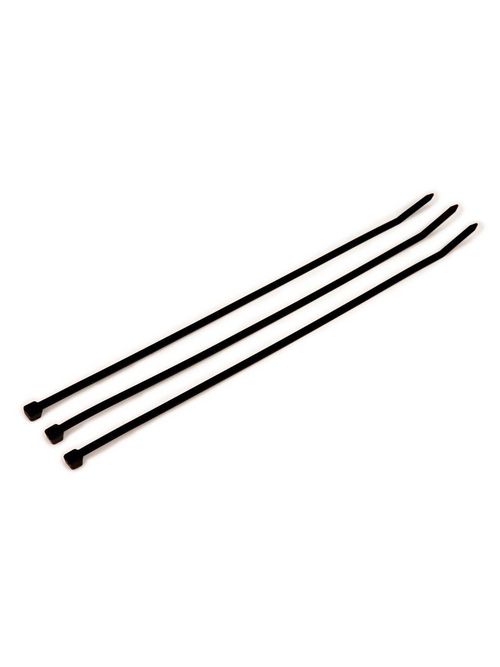

3M CT15BK120-D 500/Bag 15 Inch Black 120 lb Cable Tie
$0.20/ea
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT15BK120-D
Cooper Electric Part # 670994

Overview

3M™ Light Heavy-Duty Cable Ties hold wire bundles and harness components securely without slipping. These ties are made of nylon 6/6 to withstand harsh environmental conditions. The ends of the cable ties possess curved tips that allow faster threading and installation. They withstand a maximum operating temperature range of -40 to 185 degrees F (-40 to 85 degrees C).

3M™ Light Heavy-Duty Cable Ties feature curved tips and a self-locking head that assures locking in any position to bind the bundle wires or cables easily. These UV-resistant ties are suitable for outdoor, as well as indoor use. They are compatible to use with most standard tensioning/cutoff tools for fast production line fastening. They can be used in more demanding commercial and industrial jobs when extra strength is required. UL Listed, RoHS 2011/65/EU Compliant and Plenum-rated.

  • Curved tips offer faster threading and installation
  • Self-locking head assures locking in any position
  • Secure wire bundles and harness components quickly
  • Measures 0.3 in x 15 in
  • Tensile strength of 120 lbs
  • Tough construction of black nylon 6/6 offers resistance to ultraviolet radiation
  • Withstands a wide temperature range of -40 to 185 degrees F (-40 to 85 degrees C)
  • Bind the bundle of wires or cables easily
  • UL Listed, RoHS 2011/65/EU Compliant and Plenum-rated
  • 500/bag, 2500/case

Specifications

  • 3M ID: 80611469729
  • Agency Approvals: UL, UL Listed 62275 Type 21
  • Approximate Length: 15
  • Brand: 3M™
  • Cable Length: 15 Inch
  • Cable Length (metric): 381 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Length: 381 mm
  • Color: Black
  • Flammability Rating: UL 94 V-2
  • Length: 15 Inch
  • Length (Metric): 381 mm
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 4 Inch
  • Maximum Bundle Diameter (metric): 102 mm
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-3-0
  • Minimum Bundle Diameter (metric): 4.8 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Plenum Rated: RoHS 2011/65/EU Compliant, Yes
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Long-haul/Metro Loop Network: CO/POP, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Backhaul, Wireless Network: Infrastructure Accessories
  • Tensile Strength: Light Heavy Duty (120 lb)
  • Tensile Strength (metric): 54.431 kg
  • Thickness: 0.069 Inch
  • Thickness (Metric): 1.8 mm
  • Trademark: 3M
  • Type: Standard
  • Units per bag: 500
  • UV Resistant: RoHS 2011/65/EU Compliant, Yes
  • Width: 0.298 Inch
  • Width (Metric): 7.6 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112859313
Product Description 3M Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
GTiN 00051128593134
Length 15 in
Width 0.298 in
Color Black
Type Knotted, Light Heavy Duty
Thickness 0.069 in
Material Nylon 6/6
Applications For General use
Temperature Rating -40 to 85 C
Family Brand Name 3M
Max Operating Temperature 185 degrees F
Cable Length 15 in
Standard Packaging Qty 500/Bag
Tensile Strength 120 lb
Bundle Diameter 4 in
