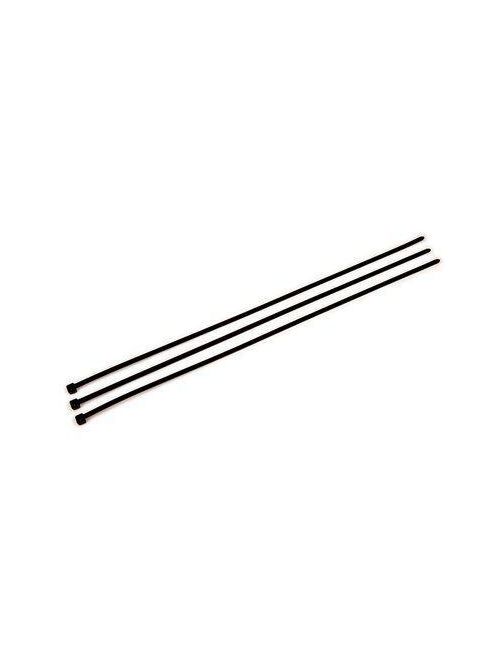

3M CT15BK120-C 100/Bag 15 Inch Black 120 lb Cable Tie
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$0.37/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT15BK120-C
Cooper Electric Part # 670993

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • Made in the USA
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces

Specifications

  • Approximate Length: 15
  • Cable Length (Imperial): 15 in
  • Cable Length (Metric): 381 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Base Height: 15 in
  • Cable Tie Length: 381 mm
  • Color Family: Black
  • Flammability Rating: UL 94 V-2
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 4 Inch
  • Maximum Bundle Diameter (Metric): 102 mm
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Mil Spec: MS3367-3-0
  • Minimum Bundle Diameter: 0.1875 Inch
  • Minimum Bundle Diameter (Metric): 4.8 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): -40 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Minimum Order Quantity: 100
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Overall Length (Imperial): 15 in
  • Overall Length (Metric): 381 mm
  • Overall Width (Imperial): 0.298 in
  • Overall Width (Metric): 7.6 mm
  • Package Quantity: 100
  • Plenum Rated: Yes
  • Product Color: Black
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tape Type: Barricade
  • Tensile Strength (Imperial): 120 lbs
  • Tensile Strength (Metric): 54.43 kg
  • Type: Standard
  • UL Approval: Yes
  • UV Resistant: Yes

Overview

UPC 05112859312
Product Description Plenum ratedSelf locking headCurved tip allows for faster threading and installationUV weather resistant for outdoor useBlack colour
GTiN 00051128593127
Length 15 in
Width 0.298 in
Color Black
Type Light Heavy Duty
Thickness 0.069 in
Material Polyamide
Applications For General use
Temperature Rating -40 to 85 C
Family Brand Name 3M
Max Operating Temperature 185 degrees F
Cable Length 15 in
Standard Packaging Qty 100/Bag
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Tensile Strength 120 lb
Bundle Diameter 4 in
Overall Length 15 in
