3M CT11NT50-C 100/Bag 11 Inch Natural 50 lb Cable Tie
$0.17/ea
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT11NT50-C
Cooper Electric Part # 670983

Overview

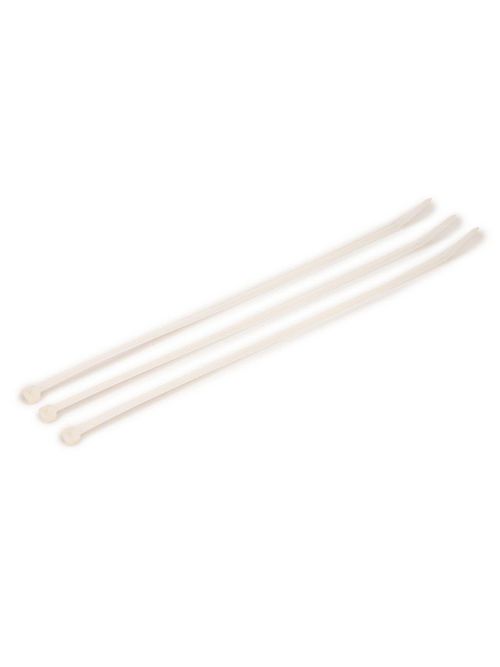

3M™ Cable Ties are made with high quality 6/6 nylon and designed to secure wire bundles and harness components quickly, without slipping. The 3M™ Cable Tie CT11NT50-C is 11.1" in length. Natural. 50 lb tensile strength. 100 pcs/bag.

  • Plenum Rated
  • Self Locking Head
  • Curved tip allows for faster threading and installation

Specifications

  • 3M ID: 80611469612
  • Agency Approvals: UL, UL Listed 62275 Type 21
  • Approximate Length: 11
  • Brand: 3M™
  • Cable Length: 11 Inch
  • Cable Length (metric): 314.3 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Length: 282 mm
  • Color: Natural
  • Flammability Rating: UL 94 V-2
  • Length: 11.1 Inch
  • Length (Metric): 282 mm
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 3 Inch
  • Maximum Bundle Diameter (metric): 76 mm
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Mil Spec: MS3367-7-9
  • Minimum Bundle Diameter (metric): 1.6 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Plenum Rated: RoHS 2011/65/EU Compliant, Yes
  • RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Long-haul/Metro Loop Network: CO/POP, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Backhaul, Wireless Network: Infrastructure Accessories
  • Tape Type: Barricade
  • Tensile Strength: Standard (50 lb)
  • Tensile Strength (metric): 22.68 kg
  • Thickness: 0.054 Inch
  • Thickness (Metric): 1.3 mm
  • Trademark: Scotch®
  • Type: Standard
  • Units per bag: 500
  • UV Resistant: No, UV Resistant
  • Width: 0.18 Inch
  • Width (Metric): 4.6 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112859302
Product Description Plenum ratedSelf locking headCurved tip allows for faster threading and installationNatural colour
GTiN 00051128593028
Length 11.1 in
Width 0.18 in
Color Natural
Type Standard
Thickness 0.054 in
Material Polyamide
Applications For General use
Temperature Rating -40 to 85 C
Family Brand Name 3M
Max Operating Temperature 185 degrees F
Cable Length 11 in
Standard Packaging Qty 100/Bag
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Tensile Strength 50 lb
Bundle Diameter 3 in
