3M BSV14Q 25 /Bag Vinyl Butt Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$5.53/ea
In Stock | 81 available at 12 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # BSV14Q
Cooper Electric Part # 765620

Features

  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 1000/case
  • 25/bag

Specifications

  • Barrel Inside Diameter: 0.17 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Length (Metric): 6.35 mm
  • Barrel Style: Butted
  • Body Material: Copper Alloy
  • Conductor Size: 16 - 14 AWG
  • Conductor Sizes: 16 - 14 AWG
  • Connector Type: Butt
  • CSA File Number: LR22190
  • Insulation Material: Vinyl
  • Material: Plastic
  • Maximum Conductor Size: 16 AWG
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 14 AWG
  • Minimum Wire Gauge: 16 AWG
  • Overall Length (Imperial): 1 in
  • Overall Length (Metric): 25.4 mm
  • Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • UL File Number: E23438

Overview

UPC 05112859997

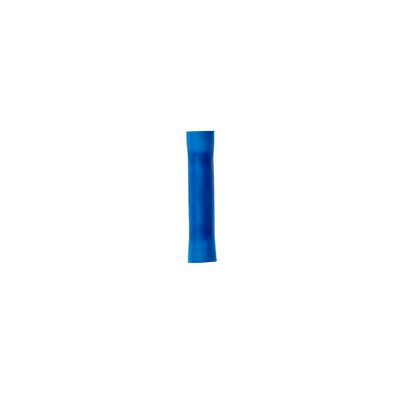

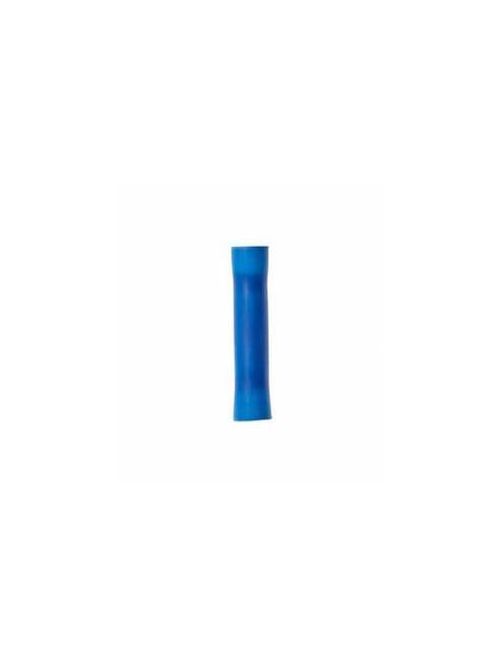

Product Description 3M Highland Color-Coded Butt Splice Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128599976
Color Blue
Type Butt Splice
Material Plastic
Wire Size 16-14 AWG
Family Brand Name Scotchlok
TC Connection Butt
Sub Brand Highland
Max Operating Temperature 221 degrees F
Overall Length 1 in
