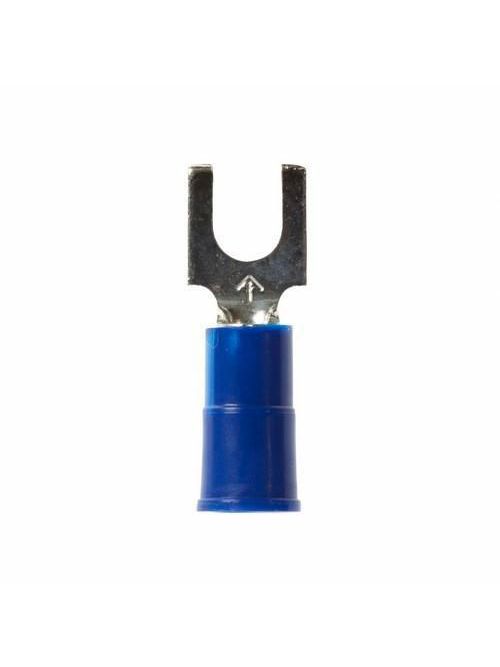

3M BFV14-8Q V 25/Bag Block Fork Highland Bag
$5.84/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # BFV14-8Q
Cooper Electric Part # 765605

Features

  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Suitable for use in a terminal block
  • 3M™ Highland™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size #8
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611602535
  • Manufacturing Origin: USA
  • Brand: Highland™
  • Connection Width (Imperial): 0.164 in
  • Connection Width (Metric): 4.166 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 7.62 mm
  • Terminal Type: Fork

Overview

UPC 05112859992
Product Description 3M Highland Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128599921
Color Blue
Type Butted
Material PVC
Wire Size 16-14 AWG
Family Brand Name Highland
Terminal Size 8
TC Connection Fork
Sub Brand Highland
Width 0.3 in
Max Operating Temperature 105 C
Overall Length 0.85 in
