3M 85-14 Multi-Mold Resin Splicing Kits
Product image thumbnail 0
Product image thumbnail 1
$54.97/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 85-14
Cooper Electric Part # 90754

Features

  • Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
  • 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
  • 3M™ Scotchcast™ Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end splice configurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.

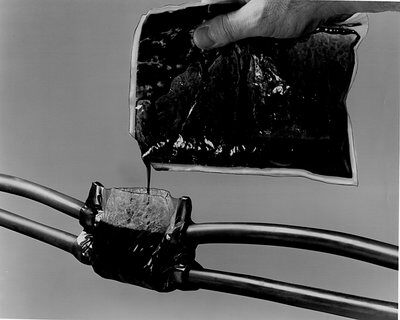

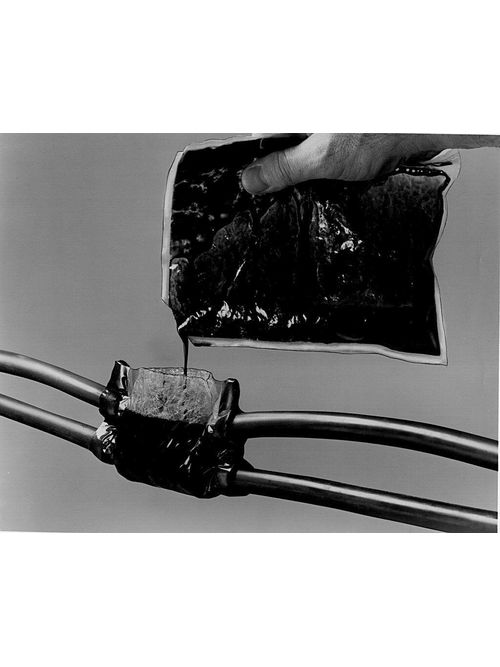

  • 3M™ Scotchcast™ Multi Mold Resin Splice Kit 85 Series includes a flexible film plastic mold, electrical insulating resin 2104, pressure sensitive adhesive film sealing strip and a comprehensive instruction booklet. Using split bolts, H tap or C tap compression connectors, it provides inline, wye, X, butt and dead end splice configurations. It has a flexible film plastic mold with a built in porous spacer web for ensuring proper thickness of insulating compound. The splice kit is perfect for direct burial applications, underground systems, joining of cable reel ends, cable failures and dig ins. RoHS 2011/65/EU Compliant‎.
  • Includes comprehensive instruction booklet showing installation techniques for typical splice configurations, in both the horizontal and vertical positions.
  • Includes pressure-sensitive adhesive film sealing strip
  • RoHS 2011/65/EU Compliant‎

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610077127
  • Brand: Scotchcast™
  • Cable Shielding: Non-shielded
  • Cable Type: Power Cable
  • Conductor Amount: Multiple || Single
  • Conductor Sizes: 2/0 AWG || 4/0 AWG
  • H or C Tap Compression Maximum Conductor Sizes: 4/0 AWG Stranded
  • Manufacturing Origin: USA
  • Maximum Cable Outside Diameter: 7/8 Inch (run & tap)
  • Maximum Cable Outside Diameter (Metric): 22.2 mm (run & tap)
  • Maximum Conductor Size: 4/0 AWG
  • Product Type: Resin Splice
  • Splice Type: Resin
  • Split Bolt Maximum Conductor Sizes: 2/0 AWG Stranded
  • Voltage: 1 kV

Overview

UPC 05400711848
Product Description 3M Scotchcast Multi-Mold Resin Splice Kits 85 Series are a group of versatile splice kits for insulating and waterproofing odd-sized and odd-shaped splices in underground applications, up to 1000 volts. Splices may be inline, wye, X, butt and dead-end spliceconfigurations (for non-shielded cable) using split bolts, H tap or C tap compression connectors.
GTiN 00054007118480
Color White
Voltage 1 kV
Type Multi-Mold, Resin
Splice Type Resin
Product Type Resin Splice
Conductor Size 2/0 AWG, 4/0 AWG
Cable Type Power Cable
Cable Size 2/0 AWG; 4/0 AWG
Family Brand Name 3M
Sub Brand Scotchcast
