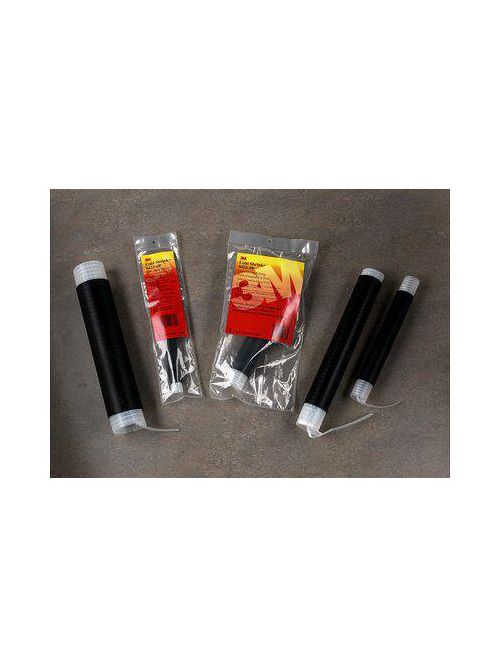

3M 8425-8P Cold Shrink Tube
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$22.15/ea
In Stock | 154 available at 7 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 8425-8P
Cooper Electric Part # 89127

Features

  • Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
  • Simple installation which requires no tools
  • Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
  • Made of black EPDM rubber
  • Made of EPDM rubber which contains no chlorides or sulfur
  • Withstands temperatures of -40 to 194 degrees F (-40 to 90 degrees C)
  • Environmental sealing for communication and other non-electrical applications

Specifications

  • Cable Shielding: Non-shielded - UniShield® - Wire Shield - Tape Shield
  • Cable Type: Power Cable
  • Conductor Material: Copper - Aluminum
  • Conductor Size Range: 2-1/0 AWG
  • Conductor Size Range (Metric): 35-50 mm²
  • Conductor Sizes: 2 AWG - 1/0 AWG - 1 AWG
  • Inner Diameter After Shrink (Imperial): 0.398 in
  • Inner Diameter After Shrink (Metric): 10.1 mm
  • Inner Diameter Before Shrink (Imperial): 0.823 in
  • Inner Diameter Before Shrink (Metric): 20.9 mm
  • Material: EPDM Rubber
  • Maximum Connector Length: 3.0 in
  • Maximum Connector Length (Metric): 76.2 mm
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): -40 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Model: Cold-shrink
  • Number of Conductors: 1
  • Product Type: Splice
  • Relaxed Tube Length: 8 in
  • Relaxed Tube Length (Metric): 203.2 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Splice Type: Cold Shrink
  • Voltage: 1 kV

Categories

Overview

UPC 05400742866
Product Description 3M Cold Shrink Connector Insulators 8420 and 8430 Series are designed using 3Ms proprietary cold shrink delivery system. Products are supplied prestretched on a removable core for efficiency and ease of installation. Removal of the core (unwinding) after positioning the splice allows the product to shrink into position forming a moisture-tight seal. The live memory action of the specially formulated EPDM material promotes a permanent, durable environmental seal and insulation, with a typical operating temperature range from -40194F (-4090C). The 8420 insulator meets requirements of ANSI C119-1 and Western Underground Guide 2.14 for secondary splices rated up to 1 kV. Applications: Primary electrical insulation for all solid dielectric (rubber and plastic) insulated wire and cable splicing rated to 1000 V. Good for repairs and environmental sealing for communication and other non-electrical applications. Important: Use insulation jacket or connector O.D. for final ordering criteria. * Mastic pads included for cable O.D. build-up. ** Kit contains adapters. *** These sizes are listed for availability only and are not designed to be used as primary insulation. These tubes are for conduit sealing and breakouts. ****Maximum connector length: 5.625 Point of Purchase packaging designated by P. Example: 8423-6P
GTiN 00054007428664
Size 1 AWG; 1/0 AWG; 2 AWG
Type Cold Shrink Splice
Material Aluminum; Copper
Number of Conductors 1
Cable Type Power Cable
Family Brand Name 3M
Voltage 1k Volt
Max Operating Temperature 194 degrees F
