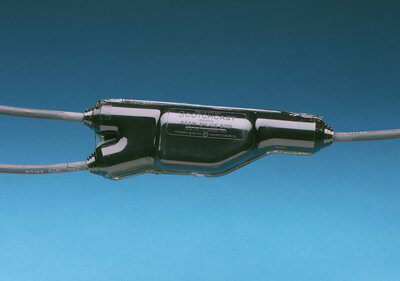

3M 82B1N WYE RESIN SPLICE KIT
$60.80/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-B1N
Cooper Electric Part # 1152255

Features

  • Designed for use on non-shielded cables
  • 3M™ Scotchcast™ Wye Resin Splice Kits are designed for insulating and sealing wye splices for compression tap connectors on power cables.
  • Insulates and seals wye splices for compression tap connectors
  • Insulates and seals wye splices for compression tap connectors (e.g., C tap or H tap) rated for cables up to 5 kV. Number of Conductors: 1 for 5 kV Multiple for 1 kV
  • Fits both split bolt and crimped conductors
  • RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611616741
  • Application: Sealing, electrical insulation and mechanical protection
  • Brand: Scotchcast™
  • Cable Shielding: Single Conductor Portable Cable
  • Conductor Amount: Multiple || Single
  • Conductor Size Range: 2/0-4/0 AWG
  • Conductor Sizes: 2 AWG || 4 AWG
  • Conductor Sizes for 1 kV and less: 4 AWG (Split Bolt)
  • Conductor Sizes for 5 kV: 4 AWG (Split Bolt)
  • Crimped Maximum Conductor Sizes: 2/0 AWG
  • Insulation O.D. Range: 0.250 - 0.625 Inch
  • Insulation Outside Diameter Range: 0.250 - 0.625 Inch
  • Insulation Outside Diameter Range (Metric): 6 - 16 mm
  • Manufacturing Origin: USA
  • Material: Epoxy
  • Maximum Cable Outside Diameter: 0.25-0.625
  • Maximum Cable Outside Diameter (Metric): 16.0 mm
  • Maximum Conductor Size: 4/0 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.625 in
  • Maximum Insulation Outer Diameter (Metric): 16 mm
  • Minimum Insulation Outer Diameter (Imperial): 0.25 in
  • Minimum Insulation Outer Diameter (Metric): 6.4 mm
  • National Stock Number: 5975009923910
  • Product Color: Black
  • Product Type: Splice
  • Splice Type: Inline
  • Split Bolt Maximum Conductor Sizes: 4 AWG
  • Voltage: 5 kV
  • Voltage Rating: 5 kV (single), 1 kV (multiple)

Overview

UPC 05112861344
Family Brand Name 3M
Color Black
