3M 82A3N INLINE POWER CABLE RESIN SPLICE KIT
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$122.85/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82A3N
Cooper Electric Part # 1152254

Features

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables
  • Splices non-shielded wet or dry cables
  • 3M™ 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations.
  • Designed for weather-exposed or direct burial locations

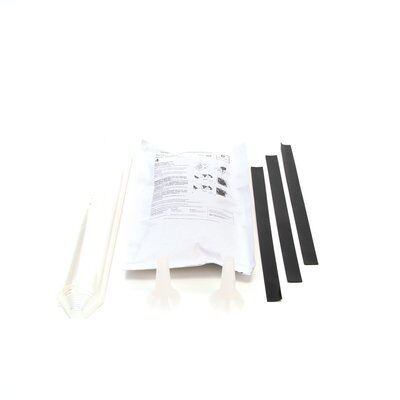

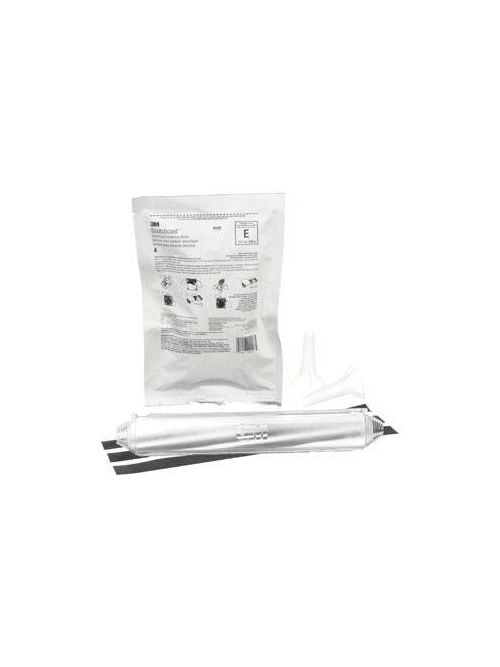

  • 3M™ 82-AN Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.
  • Rated for 5 kV and 1 kV cables
  • UL Listed and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611616733
  • Brand: Scotchcast™
  • Cable Shielding: Single Conductor Portable Cable
  • Conductor Amount: Multiple || Single
  • Conductor Size Range: 3/0 AWG-400 kcmil
  • Conductor Sizes: 3/0 AWG || 400 kcmil
  • Conductor Sizes for 1 kV and less: 400 kcmil
  • Conductor Sizes for 5 kV: 400 kcmil
  • Insulation O.D. Range: 1.00 - 1.563 Inch
  • Insulation Outside Diameter Range: 1.00 - 1.563 Inch
  • Insulation Outside Diameter Range (Metric): 25 - 40 mm
  • Manufacturing Origin: USA
  • Material: Epoxy
  • Maximum Cable Outside Diameter: 1.56 in
  • Maximum Cable Outside Diameter (Metric): 39.7 mm
  • Maximum Conductor Size: 3/0 AWG
  • Maximum Insulation Outer Diameter (Imperial): 1.562 in
  • Maximum Insulation Outer Diameter (Metric): 39.688 mm
  • Minimum Conductor Size: 400 kcmil
  • National Stock Number: 5970008101513
  • Product Color: Black
  • Product Type: Splice
  • Splice Type: Inline
  • Voltage: 5 kV

Overview

UPC 05112861343
GTiN 00051128613436
Voltage 5 kV
Splice Type Inline
Product Type Splice
Family Brand Name 3M
Product Description 3M 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV rated unshielded, single conductor cables and 1 kV rated multiple conductor cables. It is suitable for use in weather exposed or direct burial locations. 3M 82-AN Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.
Color Black
