3M Scotchcast Inline Resin Power Cable Splice Kit, 82-A1N, up to 2 AWG, 1/box
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$44.80/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 82-A1N
Cooper Electric Part # 1152252

Overview

3M™ 82-A Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV-rated unshielded, single conductor cables and 1 kV-rated multiple conductor cables. It is suitable for use in weather-exposed or direct-burial locations.

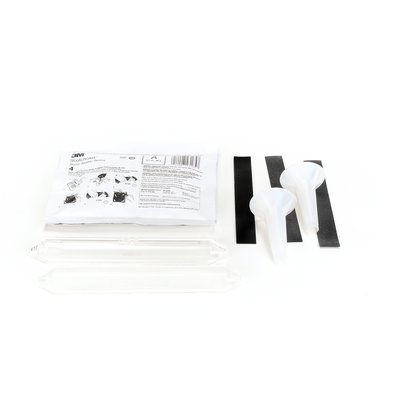

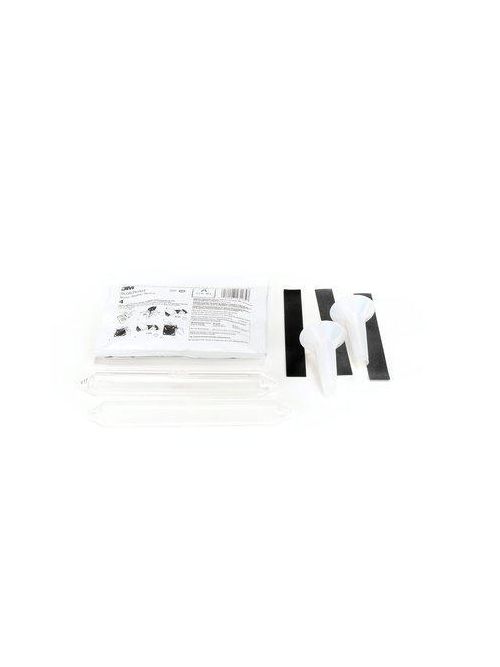

3M™ 82-A Series Inline Resin Power Cable Splice Kit includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin. It is perfect for splicing non-shielded wet or dry cables and single conductor or multiple conductor portable cables. UL Listed and RoHS 2011/65/EU Compliant.

  • Insulates and seals unshielded, single conductor cables and multiple conductor cables
  • Splices non-shielded wet or dry cables
  • Designed for weather-exposed or direct burial locations
  • Cable has 0.625-in O.D.
  • Accommodates 18 to 2 AWG size conductor
  • Rated for 5 kV and 1 kV cables
  • Includes a mold body, pouring spouts, 23 electrical tape and No. 4 resin
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

  • 3M ID: 80611616717
  • Brand: Scotchcast™
  • Conductor Sizes for 1 kV and less: 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 2 AWG, 4 AWG, 8 AWG
  • Conductor Sizes for 5 kV: 10 AWG, 12 AWG, 14 AWG, 16 AWG, 18 AWG, 2 AWG, 4 AWG, 8 AWG
  • Insulation O.D. Range: 0.406 - 0.625 Inch
  • Insulation Outside Diameter Range: 0.406 - 0.625 Inch
  • Maximum Cable Outside Diameter: 0.60 in
  • Maximum Cable Outside Diameter (metric): 15.2 mm
  • National Stock Number: 5970005208129
  • Product Series: 82-A Series
  • Product Technology: Resin
  • Product Type: Splice
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shielding Type: Multiple Conductor Portable Cable, Non-shielded, Single Conductor Portable Cable
  • Splice Type: Inline
  • Trademark: Scotchcast
  • Voltage: 1 kV, 5 kV

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112861341
Product Description 3M 82-AN Series Inline Resin Power Cable Splice Kit is designed to insulate and seal 5kV-rated unshielded, single conductor cables and 1 kV-rated multiple conductor cables. It is suitable for use in weather-exposed or direct-burial locations.
GTiN 00051128613412
Voltage 1 kV
Type Inline Resin
Splice Type Inline
Material Epoxy
Product Type Splice
Conductor Size 18-2 AWG
Applications For Weather-Exposed or Direct-Burial Locations
Family Brand Name 3M
Sub Brand Scotchcast
