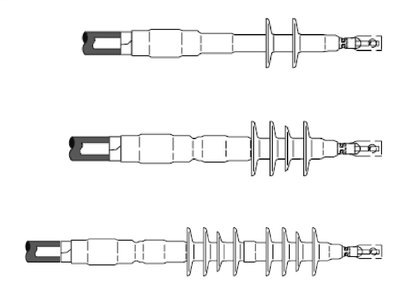

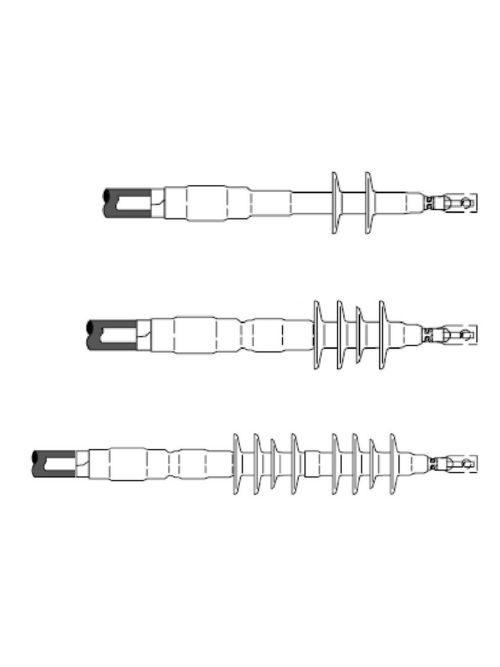

3M 7694-S-4 Cold Shrink 3 Terms/Kit 4 Skirt Termination Kit
$1,180.04/ea
Usually ships within 6 to 10 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7694-S-4
Cooper Electric Part # 54826

Overview

3M Cold Shrink QT-III Outdoor terminations offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The unique step-core design combined with the built in Hi-K stress control and silicone sealing compounds means simpler installation on all types of cable. It has UV stability and track and erosion resistance. Plus its Hi-K stress control design delivers excellent BIL performance and lower surface stress resulting in a more compact termination. Through superior engineering, 3M Cold Shrink QT-III Outdoor terminations deliver maximum performance.

Conductor Size Range for

· 5 kV: 500-750 kcmil

· 8 kV: 350-700 kcmil

· 15 kV: 4/0 AWG-500 kcmil

· 25/28 kV: 2/0 AWG-250 kcmil

Specifications

  • Lug/Stem Connector Included in Kit: No
  • Insulation Rejacketing: No
  • Agency Approvals: IEEE
  • RoHS 2011/65/EU Compliant: Undetermined
  • Shielding Type: UniShield, Wire Shield, Tape Shield
  • Trademark: 3M
  • Indoor/Outdoor: Outdoor Skirted
  • Product Family: QT-III
  • Insulation Level: 100%, 133%
  • Cable Insulation Outside Diameter Range: 0.83-1.53 in
  • RoHS EU Comments: Contact 3M for information
  • BIL: 150 kV
  • Number of Skirts: 4
  • Family: QT-III
  • Number of Conductors: 1
  • Product Series: 7690-S
  • Voltage: 8 kV, 25/28 kV, 5 kV, 15 kV
  • Cable Insulation Outside Diameter Range (metric): 21.1-38.9 mm
  • Breakout Boot: No
  • Conductor Sizes: 750 kcmil, 250 kcmil, 2/0 AWG, 500 kcmil, 3/0 AWG, 700 kcmil, 600 kcmil, 400 kcmil, 300 kcmil, 4/0 AWG, 350 kcmil
  • Maximum Installed Length: 12.25 in

Documents

Overview

UPC 05400742213
Product Description Quick installation with versatile one-piece designNo torches, heat or special tools requiredHi-K stress controlExcellent tracking resistance, UV resistance and water-shedding propertiesIncludes everything required to make 3 terminations (except lugs)Conductor size ranges: 5 kV: 500-750 kcmil8 kV: 350-700 kcmil15 kV: 4/0 AWG-500 kcmil25/28 kV: 2/0 AWG-250 kcmil
GTiN 00054007422136
Voltage 8 kV
Type QT-III
Conductor Size 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM; 500 MCM; 600 MCM; 700 MCM; 750 MCM
Applications Outdoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Indoor Outdoor Outdoor Skirted
