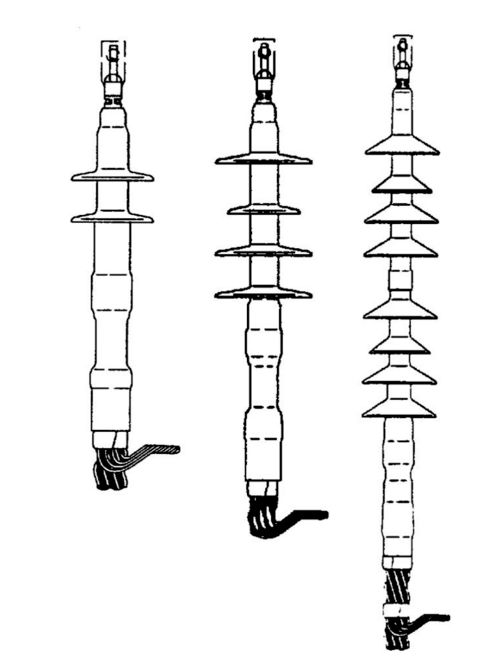

3M 7622-S-2 Cold Shrink 3 Terms/Kit 2 Skirt Termination Kit
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$959.18/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 7622-S-2
Cooper Electric Part # 95695

Features

  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for outdoor applications
  • Silicone rubber insulation offers durability and reduces leakage currents in damp conditions

Specifications

  • BIL: 110 kV
  • Breakout Boot: No
  • Cable Insulation Outside Diameter Range: 0.64-1.08 in
  • Cable Insulation Outside Diameter Range (Metric): 16.3-27.4 mm
  • Cable Shielding: UniShield® - Wire Shield - Tape Shield
  • Conductor Size by Voltage: (5 kV) 4/0 AWG-400 kcmil, (8 kV) 3/0 AWG-300 kcmil, (15 kV) 2-4/0 AWG
  • Conductor Sizes: 1/0 AWG - 2 AWG - 350 kcmil - 300 kcmil - 250 kcmil - 400 kcmil - 4/0 AWG - 1 AWG - 3/0 AWG - 2/0 AWG
  • Family: QT-III
  • Indoor/Outdoor: Outdoor Skirted
  • Insulation Level: 133% - 100%
  • Insulation Outer Diameter (Imperial): 0.97 in - 0.99 in - 0.79 in - 0.7 in - 0.71 in - 1.06 in - 0.64 in - 0.69 in - 0.92 in - 0.74 in - 0.73 in - 1.03 in - 1.07 in - 0.96 in - 0.82 in - 0.93 in - 1.08 in - 0.88 in - 0.75 in - 0.76 in - 0.67 in - 0.91 in - 1 in - 0.66 in - 0.89 in - 1.01 in - 1.05 in - 0.72 in - 0.98 in - 0.78 in - 0.77 in - 0.94 in - 0.87 in - 0.85 in - 0.8 in - 0.81 in - 0.83 in - 0.84 in - 1.04 in - 0.65 in - 0.9 in - 0.86 in - 0.68 in - 0.95 in - 1.02 in
  • Insulation Outer Diameter (Metric): 26.416 mm - 22.098 mm - 25.146 mm - 21.336 mm - 20.828 mm - 16.51 mm - 20.066 mm - 23.368 mm - 19.304 mm - 24.384 mm - 25.654 mm - 22.606 mm - 18.796 mm - 22.352 mm - 25.4 mm - 26.924 mm - 21.59 mm - 23.622 mm - 27.178 mm - 17.526 mm - 17.018 mm - 26.162 mm - 22.86 mm - 20.32 mm - 24.13 mm - 17.272 mm - 21.082 mm - 26.67 mm - 18.034 mm - 23.876 mm - 27.432 mm - 23.114 mm - 17.78 mm - 16.256 mm - 19.05 mm - 24.638 mm - 25.908 mm - 16.764 mm - 24.892 mm - 18.288 mm - 18.542 mm - 20.574 mm - 21.844 mm - 19.558 mm - 19.812 mm
  • Insulation Rejacketing: No
  • Lug/Stem Connector Included in Kit: No
  • Maximum Installed Length: 9.80 in
  • Number of Conductors: 1
  • Number of Skirts: 2
  • Product Technology: Cold Shrink
  • RoHS EU Comments: Contact 3M for information
  • Voltage: 8 kV - 15 kV - 5 kV
  • Voltage Application: Medium Voltage

Overview

UPC 05400742170
Product Description Quick installation with versatile one-piece designNo torches, heat or special tools requiredHi-K stress controlExcellent tracking resistance, UV resistance and water-shedding propertiesIncludes everything required to make 3 terminations (except lugs)Conductor size ranges:5 kV: 4/0 AWG-400 kcmil8 kV: 3/0 AWG-300 kcmil15 kV: 2-4/0 AWG
GTiN 00054007421702
Voltage 8 kV
Type QT-III
Conductor Size 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 250 MCM; 3/0 AWG; 300 MCM; 350 MCM; 4/0 AWG; 400 MCM
Applications Outdoor
Cable Type Tape Shield; UniShield(R); Wire Shield
Family Brand Name 3M
Indoor Outdoor Outdoor Skirted
