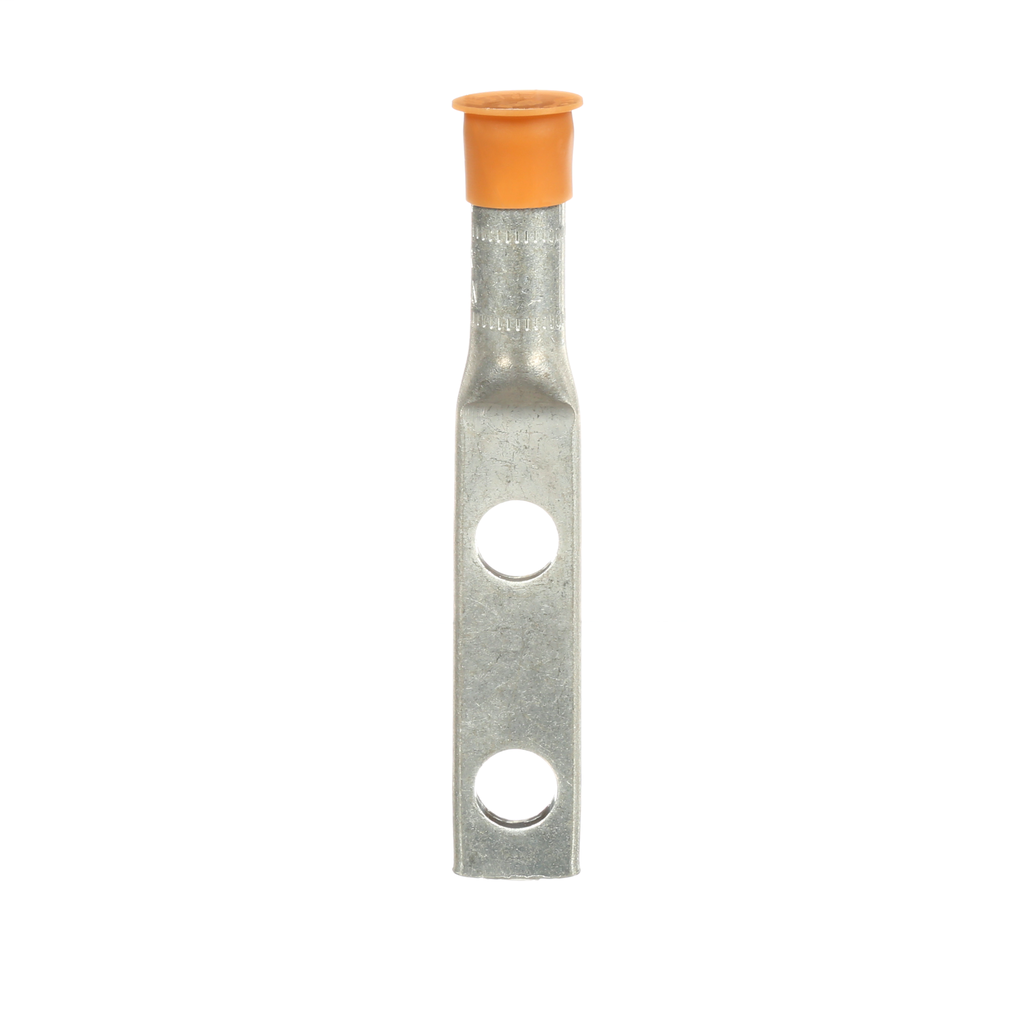

3M 40132 Copper/Aluminum 2-Hole Lug
Product image thumbnail 0
Product image thumbnail 1
$17.04/ea
Usually ships within 11 to 17 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 40132
Cooper Electric Part # 1101065

Features

  • Standard barrel ensures a secure fit and offers reliable performance
  • Barrel sealing caps are color coded to help to indicate the wire guage
  • Made of aluminum for good conductivity and tin plating for corrosion resistance
  • Rated for 35 kV voltage applications
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

  • Barrel Length (Imperial): 1.5 in
  • Barrel Length (Metric): 38.1 mm
  • Barrel Style: Standard Barrel
  • Center of Hole to Center of Hole: 1.75 Inch
  • Center of Hole to Center of Hole (Metric): 44.5 mm
  • Center of Hole to End of Pad: 0.62 Inch
  • Center of Hole to End of Pad (Metric): 15.7 mm
  • Color Family: Beige
  • Conductor Size: 1/0 AWG
  • Connector Description: Two hole
  • For Use With: Aluminum or Copper Conductors
  • Inside Diameter (Metric): 10.5 mm
  • Lug Type: Compression Lugs
  • Material: Aluminum
  • Maximum Conductor Size: 1/0 AWG
  • Maximum Operating Voltage: 35 Kilovolt
  • Number of Stud Holes: 2
  • Outer Diameter (Imperial): 0.64 in
  • Outside Diameter (Metric): 16.3 mm
  • Overall Length (Imperial): 5.28 in
  • Overall Length (Metric): 134.1 mm
  • Pad Length (Imperial): 3.25 in
  • Pad Length (Metric): 82.6 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Sizes: 3/8 Inch

Overview

UPC 05400713608
Product Description 3M Scotchlok 40100 2 Hole Compression Lug is suitable for use with copper or aluminum conductors. The lug has a standard barrel that ensures a secure fit. Aluminum construction offers high conductivity and an electro tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
GTiN 00054007136088
Length 5.28 in
Width 0.414 in
Color Beige
Type Standard Barrel
Barrel Type Standard Barrel
Conductor Size 1/0 AWG
Number of Holes 2 Hole
Applications Aluminum or Copper Conductors
Family Brand Name Scotchlok
Outside Diameter 0.64 in
Barrel Length 1.50 in
Max Voltage 35 kV
Sub Brand Scotchlok
Material Aluminum
Overall Length 5.28 in
