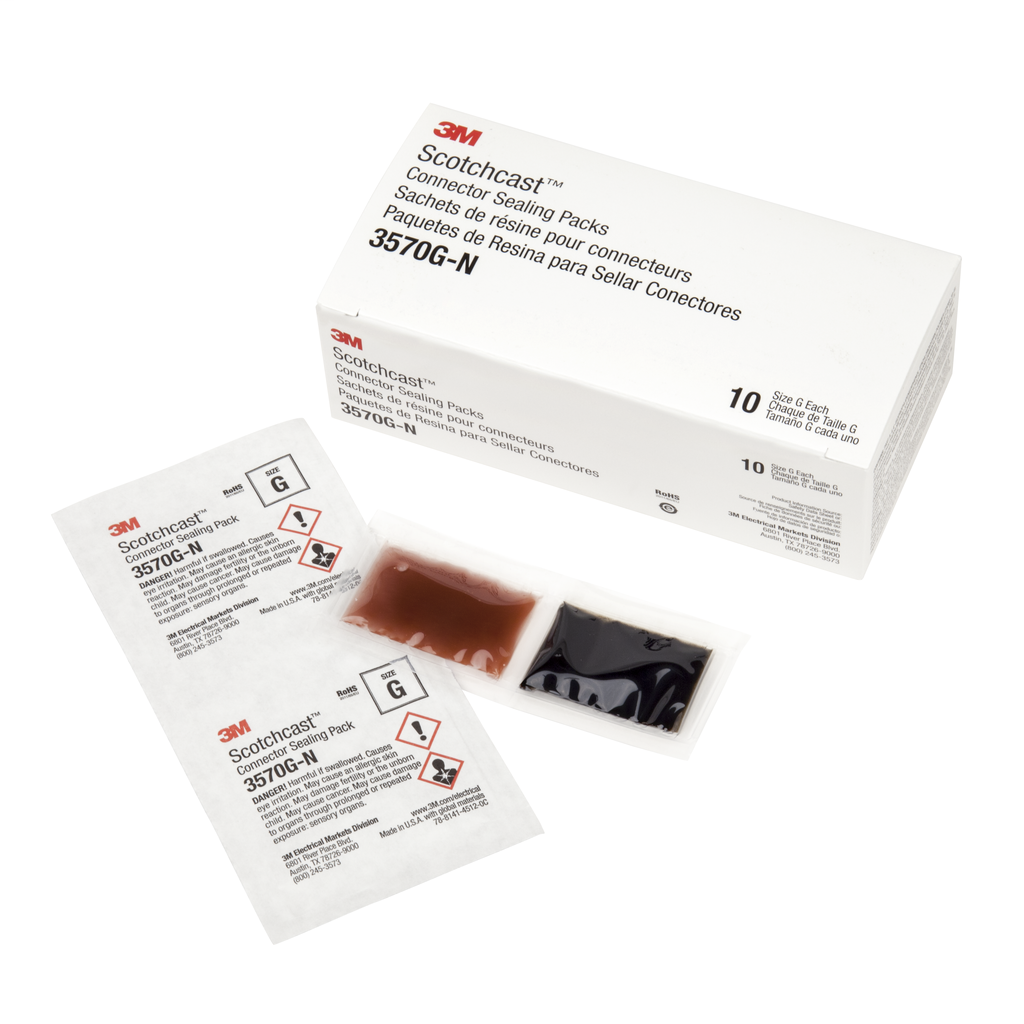

3M 3570G Connector Sealing Pack

$4.25/ea

In Stock | 553 available at 4 locations

Adding...

Already a Customer? Log in to view your pricing

Features

60 Shore D hardness
3M™ Scotchcast™ Electrical Resin 3570G N insulates and offers protection for electrical spring connectors against water, dust, soil and other environmental elements. It is a 2 part, epoxy based, liquid resin provides excellent flexibility and generates its own heat to cure. This flame retardant resin is stable in applications at elevated temperatures up to 250 °F (121 °C).
Has 8 to 12-minute gel time at 73 °F (23 °C)
Safeguards electrical spring connectors against water, dust, soil and other environmental elements
3M™ Scotchcast™ Electrical Resin 3570G N provides a tough, multi purpose, moisture sealing that comes with a unique, closed mixing pouch for mixing the resin. It is a convenient insulating and encapsulating resin for electrical spring connection. The thermosetting resin does not melt or run after curing. It is suitable for potting and protecting a wide variety of electrical spring connections. This resin is rated for 0 to 600 kV voltage applications. RoHS 2011/65/EU Compliant.
Comes in black color
Includes thermo-setting resin
Withstands temperatures of 250 °F (121 °C)
Elongates 57% longer than its original size for easy insulation or wrapping
Insulates electrical spring connectors

The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

3M ID: 80611468457
Application: Cable Connection
Brand: Scotchcast™
Cable Accessory Products: Electrical Resins
Cable Shielding: Armored || Non-Armored Shielded
Cable Type: EPR || Solid Dielectric Cables || XLP || XLPE
Color Family: Black
Conductor Sizes for 15 kV: 1 AWG || 1/0 AWG || 2 AWG || 2/0 AWG || 3/0 AWG || 4/0 AWG
Conductor Sizes for 5_8 kV: 250 kcmil || 3/0 AWG || 4/0 AWG
Connection Type: Wire
Cure Method: Room
Dielectric Strength (V/mil): 435 V/mil
Elongation: 57 %
Flame Retardant: Yes
Flexibility: Rigid
Form: Liquid
Hardness: 60 Shore D
Indoor/Outdoor: Both
Insulation Outside Diameter Range: 0.64 - 1.01 Inch
Insulation Outside Diameter Range (Metric): 16.3 - 25.7 mm
Manufacturing Origin: USA
Material: Epoxy
Maximum Wire Gauge: 95mm²
Minimum Wire Gauge: 35mm²
Number of Conductors: 3
Product Color: Black
Product Type: Accessory
Splice Type: Connector
Tensile Strength (Imperial): 1779 Pound-Force Per Square Inch
Typical Splice Length: 52.0 in
Typical Splice Length (Metric): 1320 mm
Voltage: 0 - 600 kV
Voltage Application: Medium Voltage
Wire Connector Type: Wire Connector Tools

UPC	05112859186
Product Description	Will not melt or run once it curesGenerates its own heat to cureStable in applications at elevated temperatures up to 121CTough, excellent multi-purpose moisture sealing resinResin is packaged in convenient 3M two part Unipak bag for easy mixing and pouringNo Soldering Required, solderless ground braidEasy to apply mechanical protection with 3M Armorcast Structural MaterialMeets or exceeds the 15 kV Voltage Class rating requirements of ANSI/IEEE Std 404
GTiN	00051128591864
Color	Black
Voltage	600 kV
Type	Wire
Splice Type	Connector
Product Type	Accessory
Number of Conductors	3
Applications	insulates and provides protection for electrical spring connectors against dust, soil, water and other environmental elements.
Connection Type	Wire
Family Brand Name	Scotchcast
Sub Brand	Scotchcast
