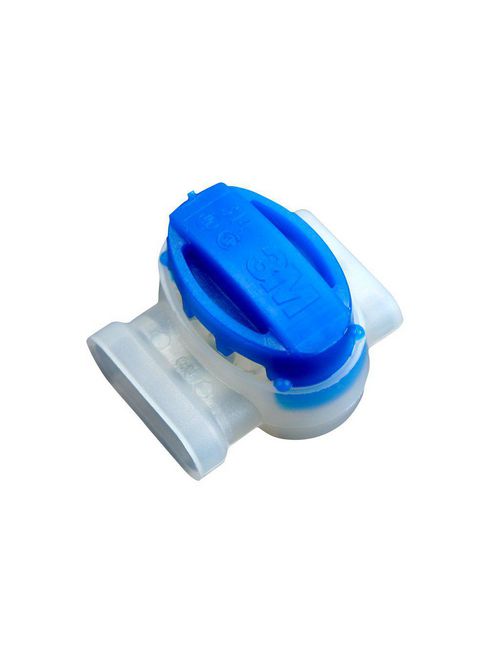

3M 314-BOX 50/Box Insulation Displacement Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$1.40/ea
ea
Adding...
Order in multiples of 50 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 314-BOX
Cooper Electric Part # 210244

Overview

The 3M Scotchlok Self-Stripping, Moisture Resistant Electrical Pigtail Connector 314 provides a moisture-resistant seal. Maximum insulation O.D. diameter of 0.155 inches (3,9 mm) and a operating temperature of 221(deg)F (105(deg)C). The suggested application tool for this connector is the E-9BM Crimping Tool.

Specifications

  • Conductor Sizes: 22 - 14 AWG
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Connection Type: Pigtail
  • Family: IDC for Electrical Applications
  • Packaging: Box
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Recommended Voltage Rating: 600 V
  • Color: Blue
  • Connector Style: Insulation Displacement
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Product Family: IDC for Electrical Applications
  • Minimum Wire Gauge: 22 AWG
  • RoHS 2011/65/EU Compliant: Yes
  • Product Line: Electrical
  • Maximum Wire Gauge: 14 AWG
  • Flame Retardant: Yes
  • Trademark: Scotchlok

Documents

Overview

UPC 05400709230
Family Brand Name 3M
Product Description Self-strippingFlame retardantMoisture resistantConnects and insulates in one stepDesigned for use with the 3M Scotchlok Crimping Tool, E-9BM
GTiN 00054007092308
Color Blue Cap and White Body
Voltage 600 Volt
Type Self-Stripping, Fully Insulated
Material Nylon
Applications For Low-Voltage Applications and used to Connect 2 or 3 Wires While Insulating the Connection
Cable Type Solid/Stranded Copper
Cable Size 22-14 AWG
Housing Material Flame Retardant Nylon
Contact Material Brass
Max Operating Temperature 221 degrees F
Blade Dimensions 0.95 in L x 0.92 in W
Sub Brand Scotchlok
Conductor Size 22 To 14 AWG
Connection Type Pigtail
Flame Retardant Yes
