Overview

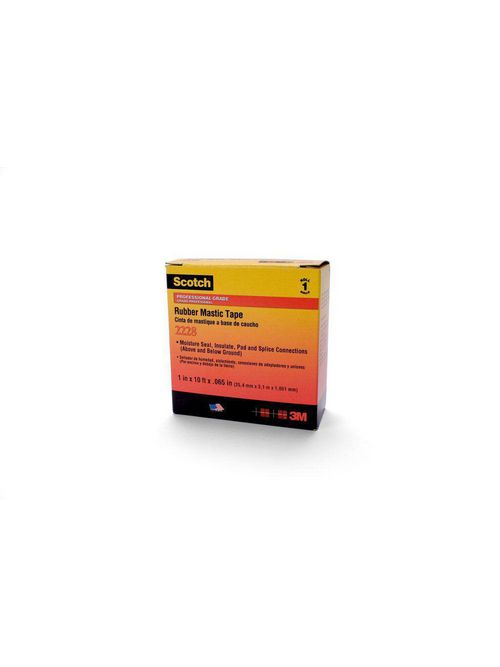

Scotch® Tape 2228 is a 65-mil thick, premium-grade, highly conformable tape used to insulate, pad and seal bus bar and splice connections. It withstands temperatures up to 194 degrees F (90 degrees C).
Scotch® Tape 2228 is moisture-resistant and has an aggressive, temperature-stable mastic adhesive that offers excellent adherence. This tape features an ethylene propylene rubber backing and optimally resists against UV rays. Ideal for both indoor and weather-exposed outdoor applications, this tape is designed for all your moisture-sealing and electrical insulating applications. RoHS 2011/65/EU Compliant.
- Provides protection against UV rays with its ethylene propylene rubber backing
- Tape measures 1 in x 10 ft x 65 mil
- Primary electrical insulation for cable and wire connections and vibration padding for motor leads rated up to 1000 volts
- Thick construction allows quick application build–up and padding over irregular connections
- Withstands temperatures up to 194 degrees F (90 degrees C)
- RoHS 2011/65/EU Compliant
- 1 roll/carton, 12 rolls/case
Specifications
- 3M ID: 80610737662
- Adhesion to Steel: 26 N/cm
- Adhesive Material: Mastic
- Applications: Electrical Maintenance
- Backing Material: Ethylene Propylene Rubber
- Backing Thickness (metric): 1.65 mm
- Brand: Scotch®
- Breaking Strength: 10 lb/in
- Case Quantity: 100 Rolls
- Color: Black
- Dielectric Strength: 500 V/mil
- Dielectric Strength (V/mil): 500
- Elongation: 1000 %
- Elongation at Break: 100%
- Emergency Overload Temperature (Celsius): 130°C
- Emergency Overload Temperature (Fahrenheit): 266°F
- Family: Scotch® Rubber Mastic Tape 2228
- High Temperature Rating: 194°F (90°C)
- Insulated: RoHS 2011/65/EU Compliant, Yes
- Length: 10 Linear Foot
- Length (Metric): 3 m
- Liner/Linerless: Liner
- Material: Mastic with EPR Backing
- Maximum Operating Temperature: 90 °C
- Maximum Operating Temperature (Celsius): 90 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
- National Stock Number: 5970014941416, 9320015134524
- Operating Temperature (Celsius): Up to 90 °C
- Operating Temperature (Fahrenheit): Up to 194 °F
- Operating Temperature Range (Celsius): Up to 90 °C
- Operating Temperature Range (Fahrenheit): Up to 194 °F
- Product Markets: Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
- Product Type: Mastic tape
- RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Rolls per Case: 12
- Self-Extinguishing: No, Sunlight Resistant
- Self Sticking/Amalgamating: RoHS 2011/65/EU Compliant, Yes
- Shelf Life: 5 Year
- Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Long-haul/Metro Loop Network: Outdoor, Wireless Network: Infrastructure Accessories, Wireless Network: Weatherproofing
- Suitable for High Voltage: RoHS 2011/65/EU Compliant, Yes
- Tape Color: Black
- Tape Grade: Premium
- Tape Type: Sealing and Mastic
- Tape Width (metric): 25 mm
- Tensile Strength lb/in (N/100 mm): 9.8 (171)
- Thickness: 65 mil
- Thickness (Metric): 1.65 mm
- Total Thickness: 1.65 mm
- Trademark: 3M™
- UV Resistant: RoHS 2011/65/EU Compliant, Yes
- Voltage: 0 to 1000V
- Voltage Application: High Voltage
- Vulcanizing: No, Sunlight Resistant
- Width: 1 Inch
- Width (Metric): 25 mm
