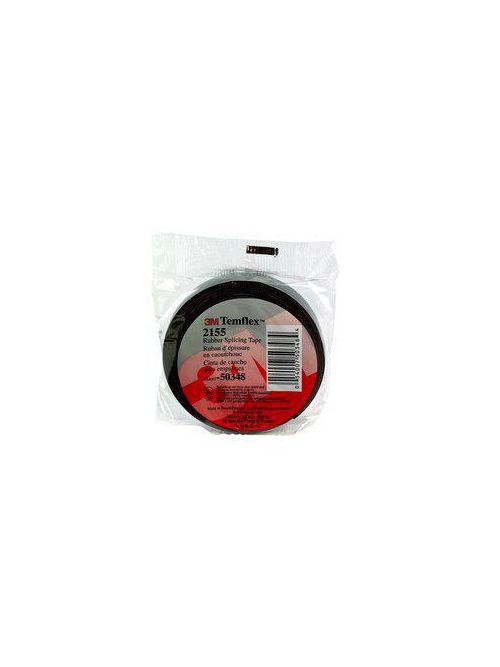

3M 2155-3/4X22FT Splicing Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 2155-3/4x22FT
Cooper Electric Part # 377025


  • Rubber resin provides excellent adherence
  • Self-fusing rubber backing offers durability and resists tears as well as abrasion
  • Withstands temperatures up to 176 °F (80 °C)
  • UL Listed and RoHS 2011/65/EU Compliant


  • Manufacturer Catalog Number: 7000089970
  • Adhesive Material: Rubber Resin
  • Application: Electrical Maintenance|| Insulation
  • Backing Material: Rubber
  • Backing Thickness (Metric): 0.76 mm
  • Breaking Strength (Imperial): 9 lb/in
  • Color Family (incorporate Product Color): Black
  • Dielectric Strength (V/mil): 600
  • Elongation: 700 %
  • Elongation at Break: 7
  • Gel Time: 28 Minutes at 140°F (60°C)
  • High Temperature Rating: 176°F (80°C)
  • Insulated: Yes
  • Liner/Linerless: Liner
  • Maximum Operating Temperature (Celsius): 80 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 176 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): 0 Degree Celsius
  • Operating Temperature (Fahrenheit): Up to 176 °F
  • Overall Length (Imperial): 22 ft
  • Overall Length (Metric): 6.7 m
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19 mm
  • Self-extinguishing: No
  • Self-sticking: Yes
  • Shelf Life: 3 Year
  • Suitable for High Voltage: No
  • Tape Color: Black
  • Tape Grade: General Use
  • Tape Type: General Use Rubber Tape
  • Tape Width (Imperial): 0.75 in
  • Tape Width (Metric): 19.1 mm
  • Temperature Protected Till: 80 Degree Celsius
  • Tensile Strength (Imperial): 300 Pound-Force Per Square Inch
  • Tensile Strength lb/in (N/100 mm): 9 (158)
  • Tensile Strength (Metric): 2068.4 kPa
  • Total Tape Thickness without Liner (Metric): 0.76 mm
  • Total Thickness: 0.76 mm
  • UV Resistant: No
  • Voltage Rating: 600 V
  • Vulcanizing: Yes


UPC 05113897905
Product Description 3M Temflex Rubber Splicing Tape 2155 is a conformable, self-fusing, rubber electrical insulating tape. It is designed for low voltage electrical insulating and moisture sealing applications and is compatible with solid dielectric cable insulations.
GTiN 00051138979058
Length 22 ft
Width 3/4 in
Size .75 Inches x 22 Feet
Color Black
Type Self-Fusing
Thickness 30 mil
Backing Material Rubber
Applications For Insulating Wire Splices, Split Bolt Connections and Motor Leads Up to 600 V
Temperature Rating 0 - 80 C
Family Brand Name 3M
Tensile Strength 300 lb/in
Sub Brand Temflex
Material Silicone Rubber
Max Operating Temperature 176 degrees F
Overall Length 22 ft
Operating Temperature 176 degrees F
Voltage 600 Volt
Tape Color Black
Insulated? Yes
