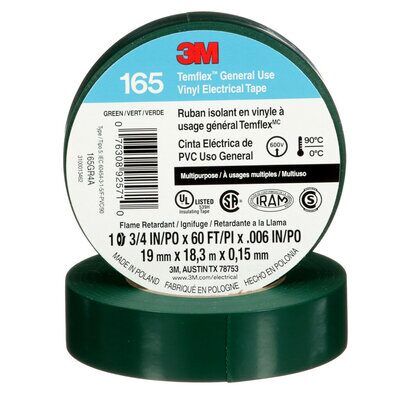

3M 165GR4A 3/4 Inch x 60 Foot Templex Vinyl Electrical Tape, Green, 6 mil (19 mm x 20 m)
Product image thumbnail 0
Product image thumbnail 1
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 165GR4A
Cooper Electric Part # 1608575


  • Resists abrasion, moisture, alkalis, solvents and acids
  • Flame-retardant and inhibits the corrosion of electrical conductors
  • Made of durable PVC
  • Compatible with rubber and synthetic splicing compounds
  • Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
  • UL Listed, CSA and VDE Certified


  • Adhesion to Steel: en-CA: 18 oz/in - en-US: 18 oz/in - fr-CA: 18 oz/in
  • Adhesive Type: Rubber
  • Application: Insulation
  • Backing Material: Polyvinyl Chloride
  • Chemical Resistant: Yes
  • Dielectric Strength (V/mil): 1000
  • Elongation at Break: 200
  • Flame Retardant: Yes
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Minimum Operating Temperature (Celsius): 0 Degree Celsius
  • Minimum Operating Temperature (Fahrenheit): 32 Degree Fahrenheit
  • Overall Length (Imperial): 60 ft
  • Overall Length (Metric): 18.3 m
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19 mm
  • Product Color: Green
  • Product Type: Vinyl Electrical Tapes
  • Suitable for High Voltage: No
  • Tape Grade: General Use
  • Tape Length (Metric): 18.3 m
  • Tape Width (Metric): 19 mm
  • Total Tape Thickness without Liner (Imperial): 0.006 in
  • Total Tape Thickness without Liner (Metric): 0.15 mm
  • Voltage Rating: 600 V


MDM UPC 07630892571
Family Brand Name 3M
Width 0.75 in
Adhesive Type Rubber
Color Green
Applications Insulation
Overall Length 60 ft
GTiN 00076308925710
