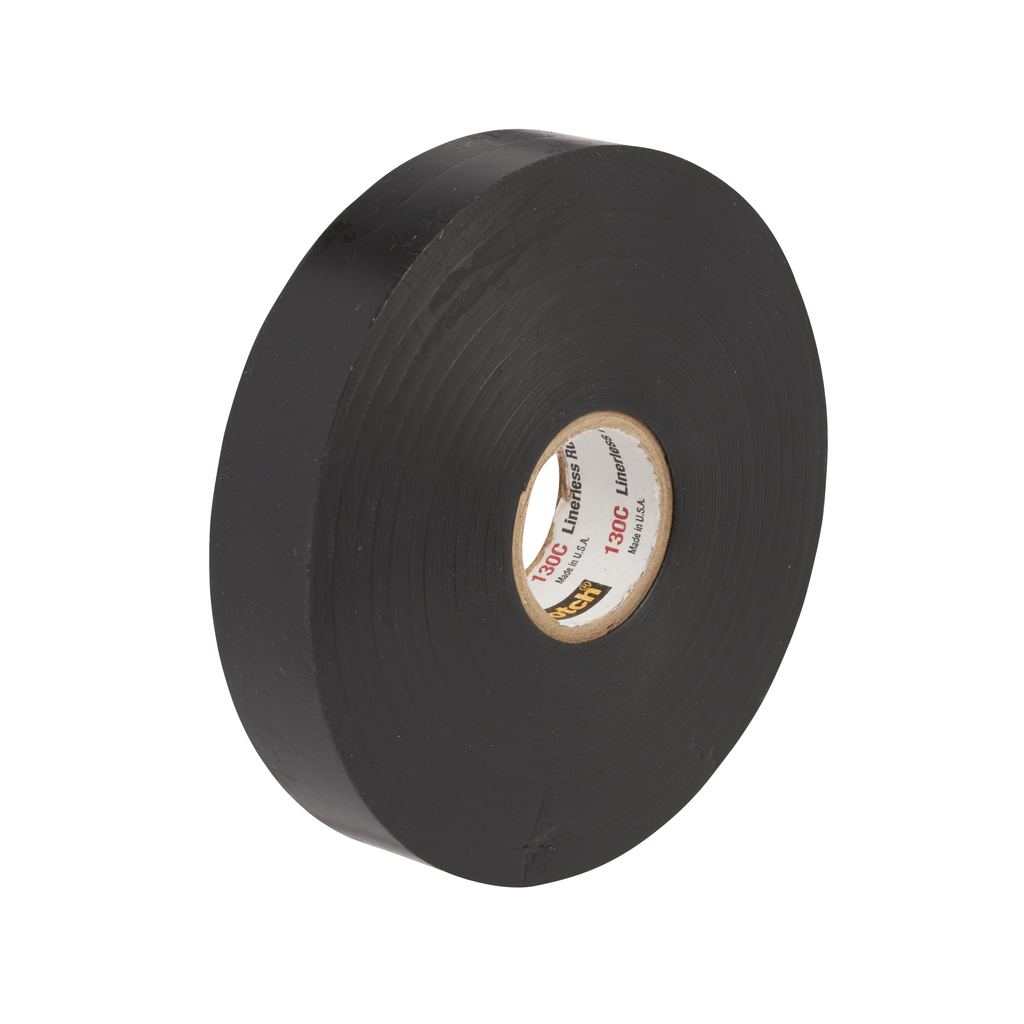

3M 130C-3/4x30FT Linerless Rubber Tape
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
$22.26/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # 130C-3/4x30FT
Cooper Electric Part # 25580

Features

  • Highly conformable, rubber-resin adhesive and the self-fusing, ethylene propylene, rubber backing provides UV resistance
  • Provides an excellent thermal dissipation of splice heat
  • Excellent electrical and mechanical properties offer a moisture seal and void-free buildups
  • Withstands temperatures up to 194 °F (90 °C)
  • ASTM Approved and RoHS 2011/65/EU Compliant

Specifications

  • Adhesive Material: Rubber Resin
  • Application: Insulation
  • Application/Industry: Maintenance and Repair Operations - Commercial Construction - Appliance and Fixture - Wind Power - Mining - Utility - Industrial Construction - Communications - Solar
  • Backing Material: Ethylene Propylene Rubber
  • Breaking Strength (Imperial): 7.5 lb/in
  • Dielectric Strength: 750
  • Elongation at Break: 850%
  • Insulation Resistance: >10^15 Ohm
  • Maximum Operating Temperature (Celsius): 90 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 194 Degree Fahrenheit
  • Overall Width (Imperial): 0.75 in
  • Overall Width (Metric): 19.05 mm
  • Product Color: Black
  • Product Type: Rubber and Splicing Tapes
  • Self-extinguishing: No
  • Self-sticking: Yes
  • Suitable for High Voltage: Yes
  • Tape Color: Black
  • Tape Grade: Premium
  • Tape Type: Professional Grade Rubber Tape
  • Tensile Strength (Imperial): 250 psi
  • Total Tape Thickness without Liner (Imperial): 30 mil
  • Total Tape Thickness without Liner (Metric): 0.76 mm
  • UV Resistant: Yes
  • Voltage Application: High Voltage
  • Voltage Rating: 69 kV

Overview

UPC 05400741717
Product Description Scotch Tape 130C is a linerless 30 mil thick, premium grade, rubber splicing tape used for splicing and terminating cables and wires. It withstands temperatures up to 194 F (90 C) with emergency overload up to 266 F (130 C). The tape has excellent electrical and mechanical properties to provide moisture seal protection.
GTiN 00054007417170
Length 30 ft
Width 0.75 in
Size .75 in x 30 ft
Color Black
Type linerless Ethylene Propylene Rubber
Thickness 0.762 mm
Material Ethylene Propylene Rubber
Product Type Rubber And Splicing Tapes
Backing Material Ethlylene Propylene Rubber
Applications Insulation
Family Brand Name Scotch
Max Operating Temperature 194 degrees F
Tensile Strength 250 Pound-Force Per Square Inch
Sub Brand Scotch
Overall Length 30 ft
