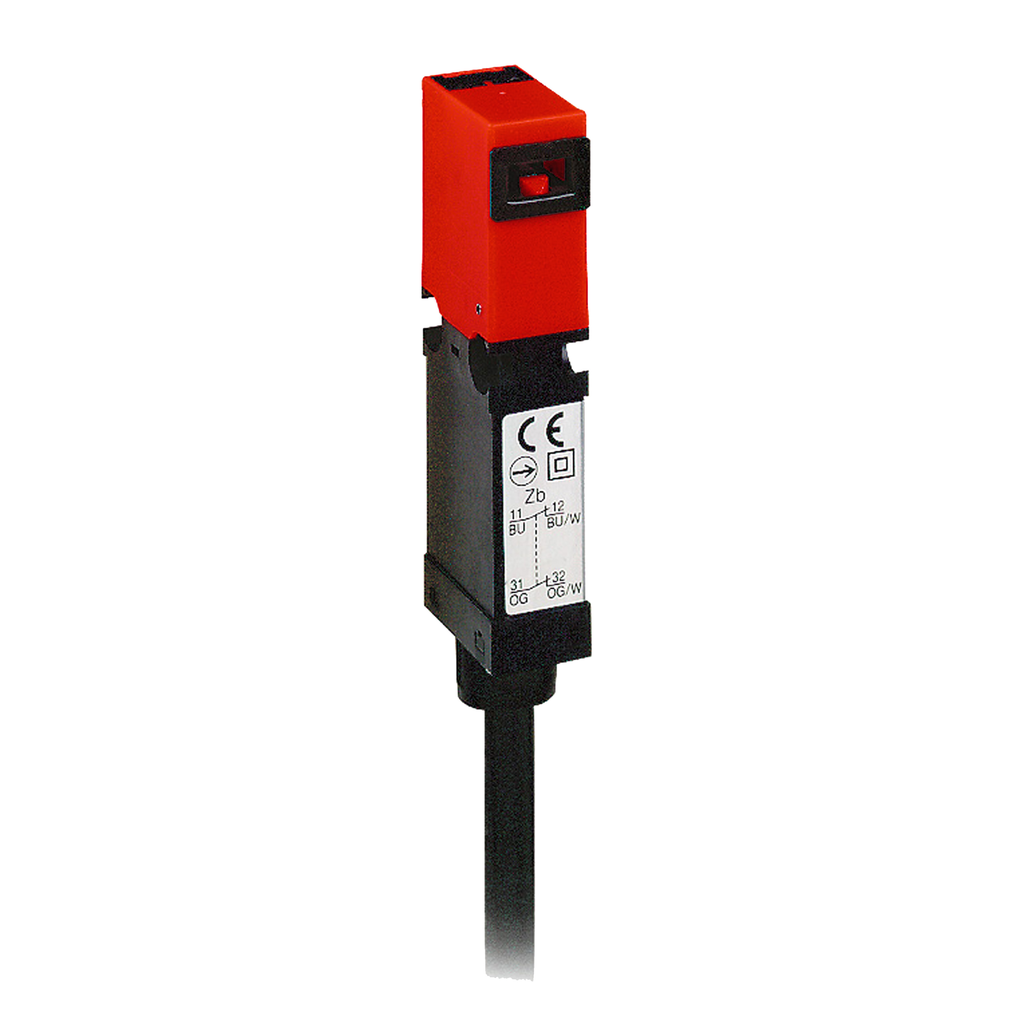

Product image for TES XCSMP59L2 Safety switch, TES Safety switches XCS, plastic XCSMP, 1 NC + 1 NO, slow break, pre cabled 2 m
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

TES XCSMP59L2 Safety switch, TES Safety switches XCS, plastic XCSMP, 1 NC + 1 NO, slow break, pre cabled 2 m

Manufacturer: TES Electric | Catalog # XCSMP59L2 | Cooper Electric Part # 399910
$106.95/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 Product Brochure
This XCSMP Key Operated Safety Switch for guard doors has a fixed head and a robust red coated polyamide compact body with 2 meter pre-cabled, allowing for flexible installation. It has 1 normally open and 1 normally closed break-before-make (slow break) contacts. Its B10D reliability data is 5 000 000. Its IP67 degree of protection makes it ideal for heavy duty use in harsh conditions. It also complies with EN/ISO 14119, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508, CSA C22.2 No 14 standards. When associated and correctly connected to an appropriate safety control unit, it conforms to Category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508.

Technical Information

Action
SLOW-BREAK, BREAK BEFORE MAKE
Actuator
KEY
Amperage
2.5 Amp
Applications
KEY OPERATED FIXED HEAD
Body Material
PA (polyamide)
Contact Configuration
1 NC + 1 NO
Enclosure
NEMA 4/4X/12 - IP67
Head Type
Key operated fixed head
Material
Plastic
Net Weight
0.11 kg
Number of Poles
2 Pole
Operating Cycles
20 cyc/mn For Maximum Durability
Operating Temperature
-25-70 Adegrees C
Size
15 MM,30 MM,87-87 MM
Standard
CSA C22.2 No 14,EN 1088/ISO 14119,EN/IEC 60204-1,EN/IEC 60947-5-1,EN/ISO 12100,UL 508
Storage Temperature
-25-80 degrees C
TC Connection
PRE-CABLED
Type
KEY OPERATED FIXED HEAD,SAFETY SWITCH
Voltage
0.55 A 125 Volt, DC-13, Q300 EN/IEC 60947-5-1-0.27 A 250 Volt, DC-13, Q300 EN/IEC 60947-5-1-0.75 A 240 Volt, AC-15, C300 EN/IEC 60947-5-1-1.5 A 120 Volt, AC-15, C300 EN/IEC 60947-5-1

Manufacturer Information

Brand
Telemecanique
Sub Brand
XCSMP

General Product Info

12-Digit UPC
785901345459
Environmental Conditions
WATER TIGHT, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
GTiN
03389110107166
Product UPC
78590134545
Weight
0.24 lb

Dimensions

Cable Length
2 m
Depth
30 mm
Height
87-87 mm
Warranty Length
18 mth
Width
15 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CSA,CUL,UL
Country of Origin
Japan
