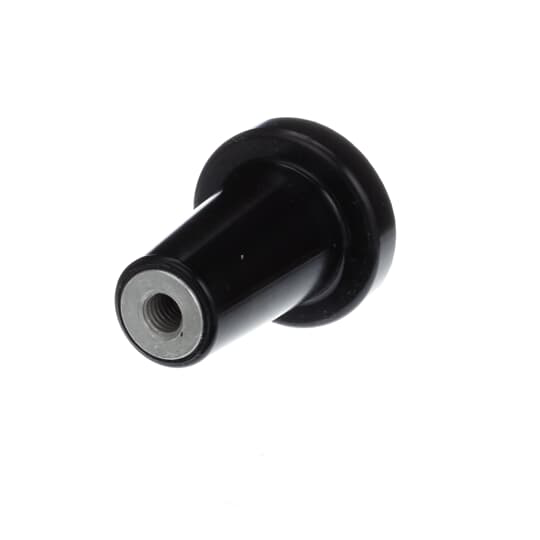

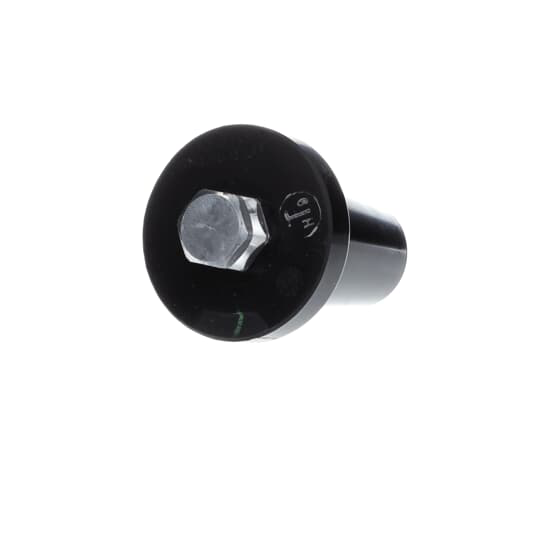

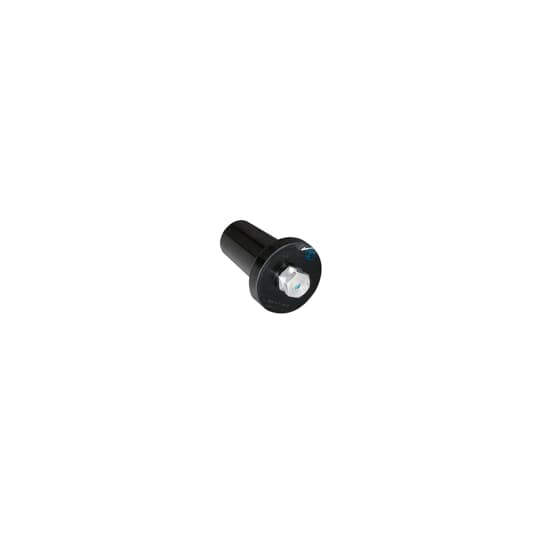

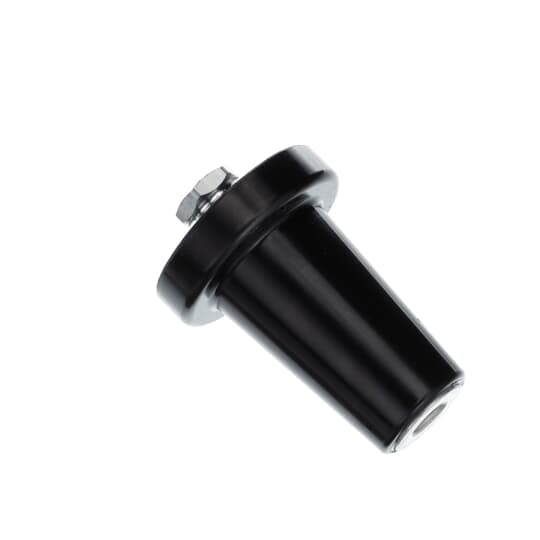

Product image for ABB Elastimold K650BIP 15/25kV 600 Series Deadbreak Insulated Plug (with Cap). Material Epoxy, Length 4.5", Widest Diameter 3".
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

ABB Elastimold K650BIP 15/25kV 600 Series Deadbreak Insulated Plug (with Cap). Material Epoxy, Length 4.5", Widest Diameter 3".

Manufacturer: Blackburn / Thomas & Betts | Catalog # K650BIP | Cooper Electric Part # 398223
$183.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
15/25kV 600 Series Deadbreak Insulated Plug (with Cap). Material Epoxy, Length 4.5 inch, Widest Diameter 3 inch.

Technical Information

Amperage
600 Amp
Applications
15/25kv, 600 Amps
Material
Rubber
Size
3 in
Temperature Rating
90 degrees C
Type
Deadbreak Insulated Plug
Voltage
15/25 kV

Manufacturer Information

Brand
ABB
Sub Brand
Elastimold®

General Product Info

12-Digit UPC
783786665464
GTiN
00783786665464
Product UPC
78378666546
Application
  • 600 Series deadbreak elbows, straight receptacles, junctions, vault stretchers and accessories are used to connect equipment and cable on primary feeder and network circuits.
Notes
  • Available with a loose stud by adding suffix \"S\" to the catalog number.
  • For 900-amp ratings, substitute 675 for 650 and 655; 676 for 656; K671 for K651; K675 for K650 and K655; K676 for K656; 775 for 750 and 755; 776 for 756 and 2X for 0X in the catalog number. The 900-amp rating requires cooper current-carrying connector components and copper conductor cable.
  • Available with the stud factory-assembled by adding \"SP\" to the catalog number. 675ETP, K675ETP and 775ETP are available as -SP only. The stud is not field removable.
