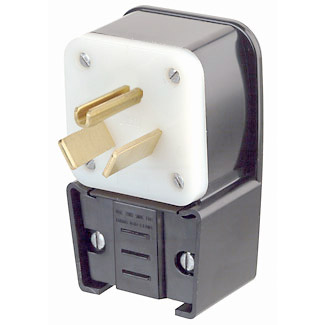

Product image for LEV 9750-P EB PLUG AGL 2PO 3WI 7-50
Image thumbnail 0
Image thumbnail 1
Email

LEV 9750-P EB PLUG AGL 2PO 3WI 7-50

Manufacturer: Leviton Mfg Co | Catalog # 9750-P | Cooper Electric Part # 395471
$95.24/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
50 Amp, 277 Volt, NEMA 7-50P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black

Technical Information

Amperage
50 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
10-4 AWG
Device Type
Power Device
Dielectric
2000 V
Grounding
Grounding
Horsepower
3 hp
Material
Nylon
Mounting Type
Cable
NEMA

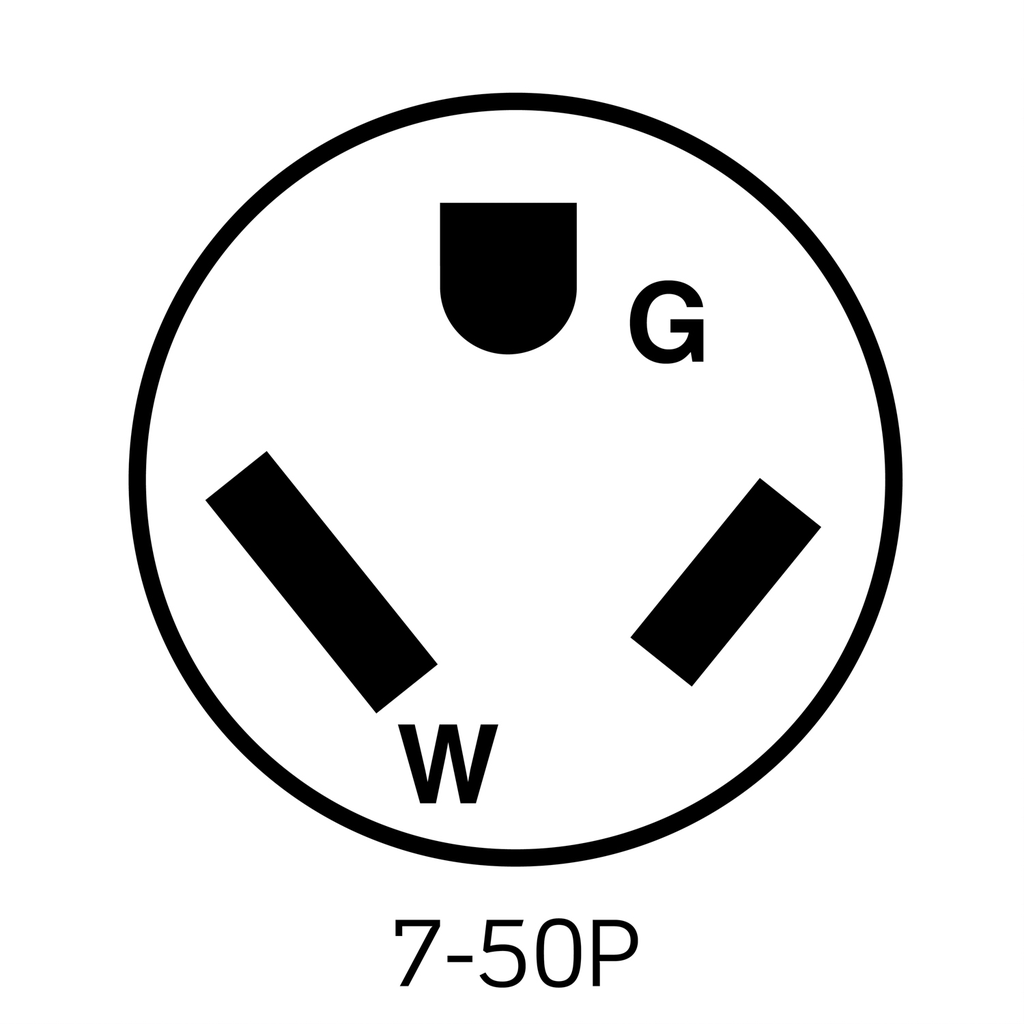

7-50P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Type
Angled
Voltage
277 Volt
Wire Count
3
Wire Size
10-4 AWG; 0.625-1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Straight Blade Plugs and Conn

General Product Info

12-Digit UPC
078477809921
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477809921
Product UPC
07847780992

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 7-50P
Features
  • Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
