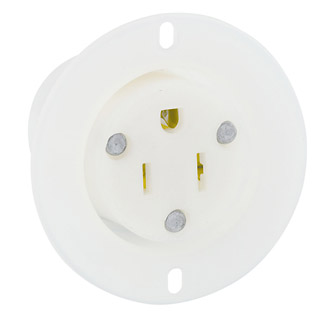

Product image for LEV 5279-C WH OUTLET FLNG 2PO 3WI 5
Email

LEV 5279-C WH OUTLET FLNG 2PO 3WI 5

Manufacturer: Leviton Mfg Co | Catalog # 5279-C | Cooper Electric Part # 395266
$61.26/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Flanged Outlet Receptacle, Straight Blade, Industrial Grade, Grounding, , Back Wired, Thermoplastic Nylon Strap - White

Technical Information

Amperage
15 Amp
Applications
Commercial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
18-10 AWG
Connection Type
Back Wired
Contact Material
Solid Brass
Device Type
Straight Blade Flanged Inlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Material
Nylon
Mounting Type
Flange
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
2.50 Dia x 1.78 H IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
18-10 AWG
Termination Type
Back Wire
Torque
10 lb-in
Type
Straight, Grounding
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477795408
Color
White
Environment
Dry
Environmental Conditions
UL 94 V-2 Flammability, Dry Location
GTiN
00078477795408
Product UPC
07847779540

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • Leviton's Straight Blade Power Outlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
NEMA
  • 5-15R
