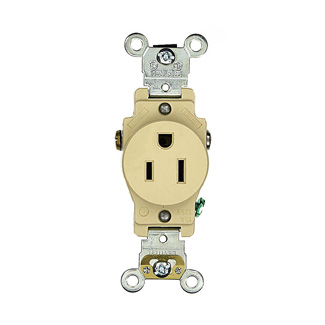

Product image for Leviton 5251-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Thermoplastic Nylon Straight Blade Receptacle
Email

Leviton 5251-I 125 Volt 15 Amp 2-Pole 3-Wire NEMA 5-15R 1/2 Hp Ivory Thermoplastic Nylon Straight Blade Receptacle

Manufacturer: Leviton Mfg Co | Catalog # 5251-I | Cooper Electric Part # 395261
$24.55/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Side Wire,NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Ivory

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wired
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Polybutylene
Mounting Type
Wall Box
NEMA
5-15R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 16 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Side Wire
Torque
14 lb-in
Type
Single Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477131275
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477131275
Product UPC
07847713127

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Color Variations
  • Black
NEMA
  • 5-15R
