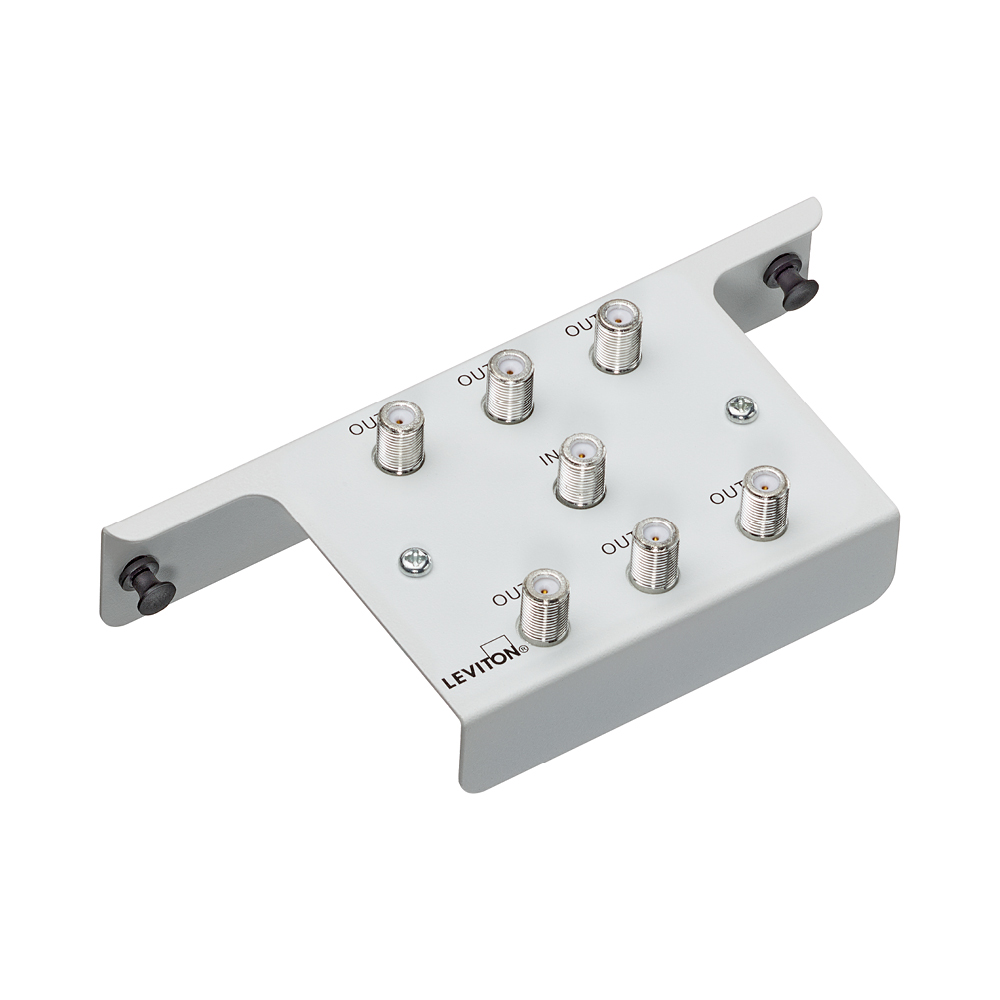

Product image for LEV 47690-6C2 1 X 6 SPLITTER MOD/PA
Email

LEV 47690-6C2 1 X 6 SPLITTER MOD/PA

Manufacturer: Leviton Mfg Co | Catalog # 47690-6C2 | Cooper Electric Part # 395233
$37.38/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
Use 6- and 8-way 2GHz Passive Video Splitters and Passive Video Splitter Modules to split digital cable, quality cable TV and off-air signals to six or eight televisions throughout a home or office. The Video Splitter Modules are designed for easy installation in any Leviton 14", 28" or 42" Structured Media Enclosure. The Video Splitters are easily installed in Leviton MDU Enclosures or used in any application where a passive video splitter is needed. These units feature die-cast housings and printed circuit board construction

Technical Information

Applications
For Residential use
Cable Type
Coaxial
Connection Type
SMC 140;SMC 180;SMC 240
Connector Type
SMC 140;SMC 180;SMC 240
Impedance
75 ?
Standard
Meets All Applicable SCTE Standards, ATIC Listed, CULus Listed
Style
1X6,1X6
Temperature Rating
-40 to 85 degrees C
Type
6-Way, 1-Input, 6-Output

Manufacturer Information

Brand
Leviton
Sub Brand
SMC Splitters

General Product Info

12-Digit UPC
078477057629
Color
White
GTiN
00078477057629
Product UPC
07847705762

Dimensions

Height
1.4 Inch
Length
3 Inch
Warranty Length
2 yr
Width
6.58 in

Certifications and Compliance

Country of Origin
China
Features
  • Split video signals with outputs for six or eight televisions
  • Provide digital cable, cable tv, and other video services via coaxial cable to any room in the house
  • Durable gold-plated 360-degree insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
  • Weather sealed F-ports up to 30 PSI
  • 75 Ohm termination caps with splitter modules
  • 6kV surge protection
  • Built-in capacitors on all ports block DC or low-frequency AC and also prevent current from flowing through splitters ferrite core windings that cause hum modulation
  • High-quality plating passes 1200-hour salt spray test
  • Maintains low temperature stability from 40°C to 85° C both in isolation and return loss
