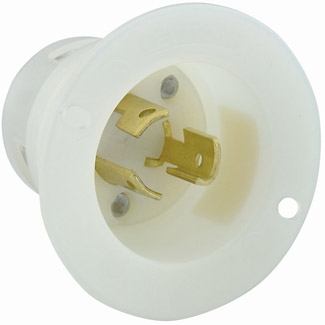

LEV 4716-C WH INLET FLNG 2PO 3WI L5

Manufacturer: Leviton Mfg Co | Catalog # 4716-C | Cooper Electric Part # 395223
$47.27/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet
15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Flanged Inlet Locking Receptacle, Industrial Grade, Grounding - WHITE

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
18-10 AWG
Connection Type
Back Wired
Contact Material
Solid Brass
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Flange
NEMA

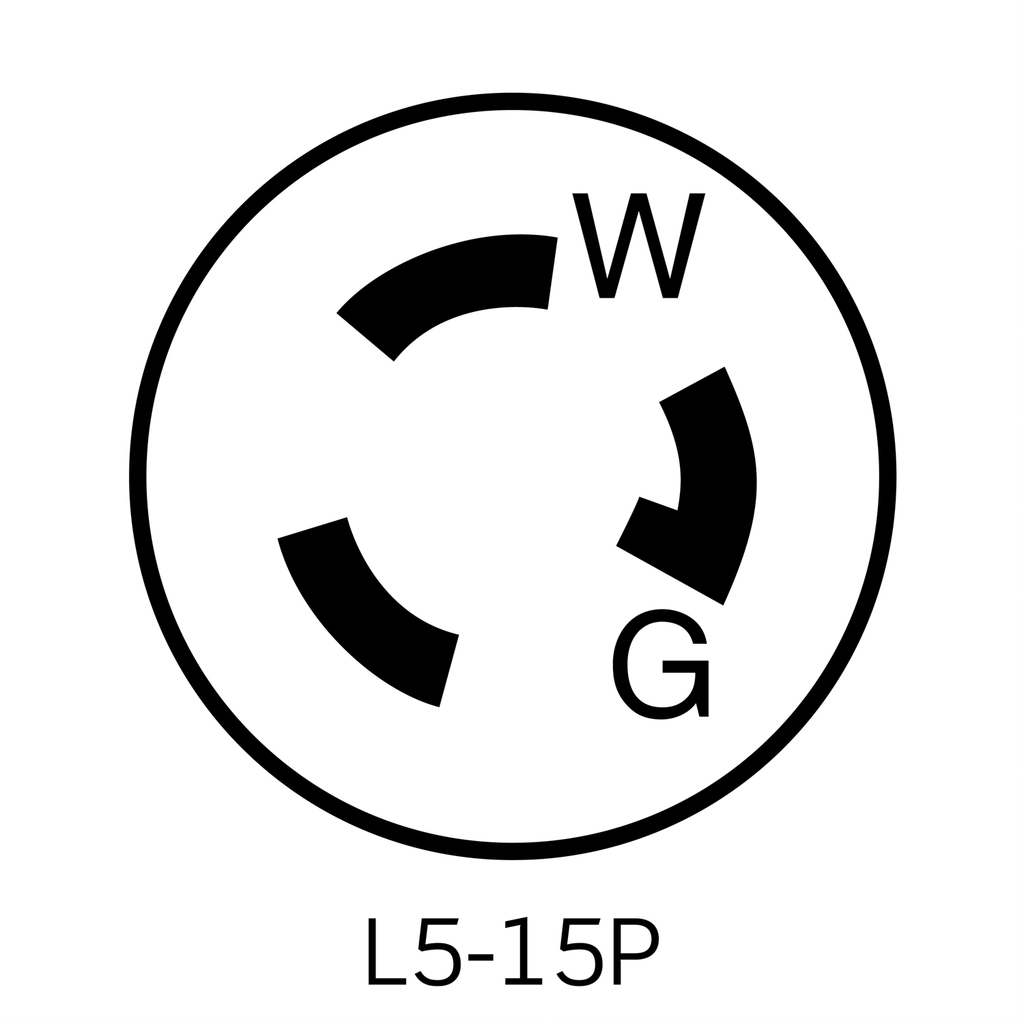

L5-15P
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
2.50 Dia x 1.78 H IN
Standard
ANSI C-73
TC Connection
Back Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire
Type
Locking
Voltage
125 Volt
Wire Count
3
Wire Size
18-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477795569
Color
White
Environment
Dry
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477795569
Product UPC
07847779556

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Features
  • One piece contacts reduce friction and overheating
  • Rugged nylon construction resists impact, sunlight, chemicals, and rough use
  • Ratings and NEMA I.D. permanently marked on device
  • Industry exclusive limited lifetime warranty
NEMA
  • L5-15P
