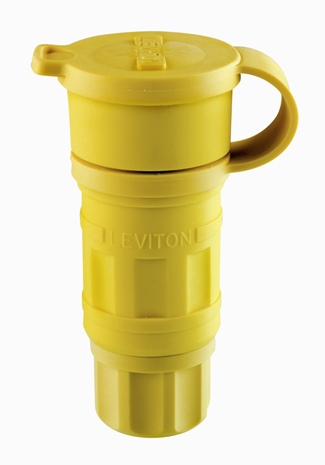

Product image for Leviton 27W75 20 Amp 250 Volt 3-Phase NEMA L15-20R 3-Pole 4 Wire Industrial Grade Grounding Wetguard Yellow Locking Connector
Image thumbnail 0

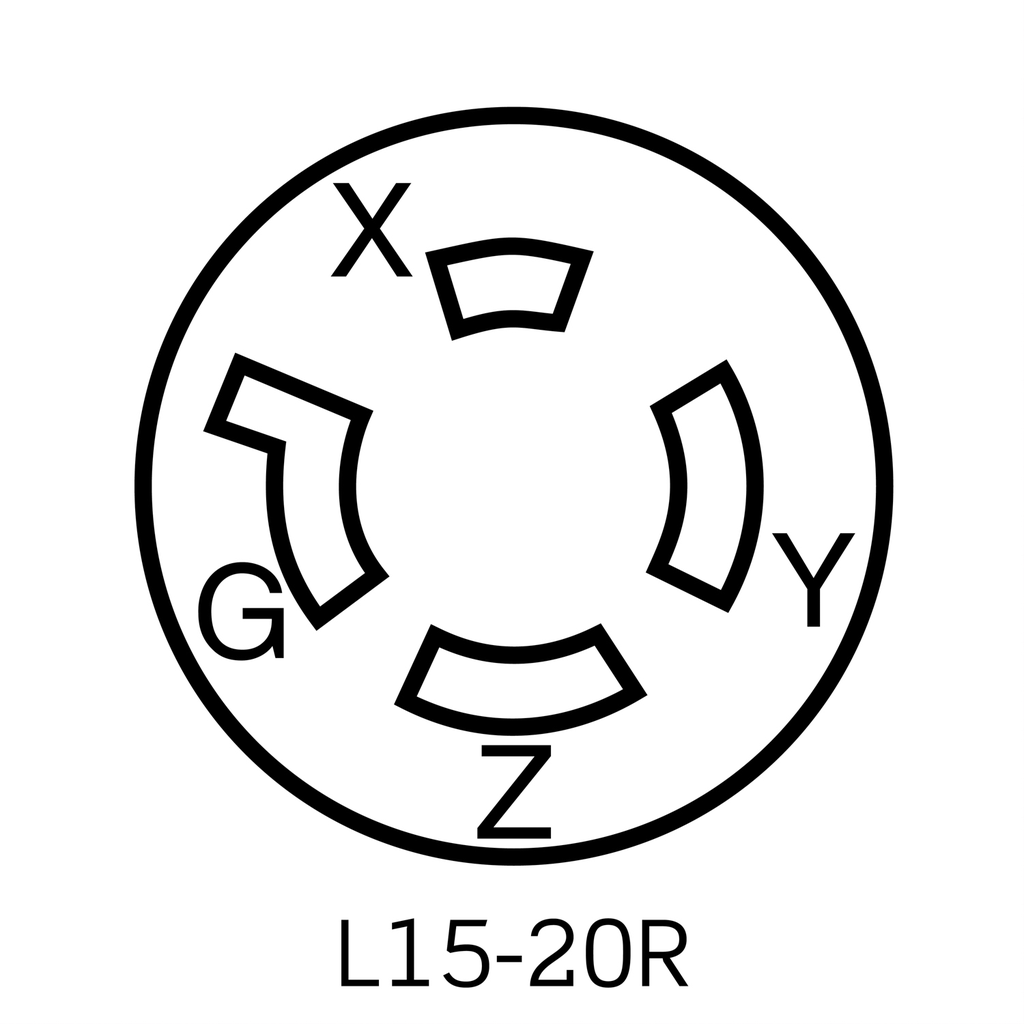

Image thumbnail 1
Email

Leviton 27W75 20 Amp 250 Volt 3-Phase NEMA L15-20R 3-Pole 4 Wire Industrial Grade Grounding Wetguard Yellow Locking Connector

Manufacturer: Leviton Mfg Co | Catalog # 27W75 | Cooper Electric Part # 395109
$209.76/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Ocean Opens Monday 7:00am ET
3 available

For Delivery

Order by Monday 5:00pm ET for delivery Tuesday
Not in local stock *
Check another branch
Product Spec Sheet Safety Data Sheet Product Brochure
20 Amp, 250 Volt 3-Phase, NEMA L15-20R, 3P, 4W, Locking Connector, Industrial Grade, Grounding, Wetguard - YELLOW

Technical Information

Actuator
Stainless Steel 300,Stainless Steel 300
Amperage
20 Amp
Applications
Industrial
Blade Type
Nickel-Plated Brass,Nickel-Plated Brass
Body Material
EPTR Rubber
Conductor Size
16-10 AWG
Connection Type
Screw Terminal
Contact Material
Electroless Nickel-Coated Brass,Nickel-Plated Brass
Cord Type
SO,SOO,ST,STO
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
IP Rating
IP66,IP67,IP69K
Material
TPV
Mounting Type
Cable
NEMA
WD-6
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Type
Electroless,Nickel-Coated Brass,Stainless Steel 300,Stainless Steel, Non-Magnetic
Size
2.50 Diameter X 5.52 L IN
Standard
UL
TC Connection
Screw, 6 Terminals
Temperature Rise
200 %
Terminal Size
#16-10 AWG
Torque
12 lb-in
Type
Locking,Watertight Connector
Voltage
250 Volt
Wire Count
4
Wire Size
16-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Wetguard®

General Product Info

12-Digit UPC
078477967799
Color
Black on Yellow
Environment
Wet
Environmental Conditions
Operating Temperature Range (-40 to 60) C
GTiN
00078477967799
Product UPC
07847796779

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Black
Features
  • BATTLE THE ELEMENTS- Resistant to water, acids, alkalies, and many automotive and industrial lubricants and solvents
  • WATERTIGHT- When mated or caps are on, feature IP69K ratings for high-temperature, high-pressure washdowns
  • UNIQUE DESIGN- Exclusive tongue and groove design provides superior ingress protection from water, dirt and debris
  • HIGH PERFORMANCE- Heavy-duty, one-piece contacts for maximum conductivity electrical performance
  • THE BRAND YOU TRUST- Backed by a lifetime warranty
NEMA
  • L15-20R
