LEV 1254-HI IV REC HG 4IN1 2PO 3WI

Manufacturer: Leviton Mfg Co | Catalog # 1254-HI | Cooper Electric Part # 395050
$68.05/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Safety Data Sheet Product Brochure

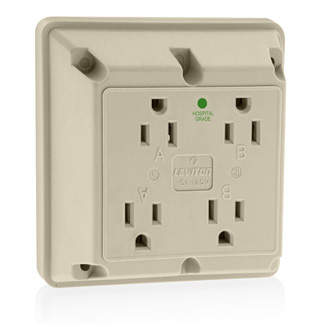

4-in-1 Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Ivory

Technical Information

Amperage
15 Amp
Applications
For Commercial Use
Body Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Contact Material
Phosphor Bronze
Device Type
Quadruplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Heavy-Duty Hospital
Grounding
Grounding
Horsepower
1/2 hp
Material
Nylon
Mounting Type
Wall Box
NEMA
WD-1,WD-6
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
4.50 L x 4.50 W x 1.15 D IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Termination Type
Side Wire
Torque
12 lb-in
Type
4-in-1
Voltage
125 Volt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477830482
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTiN
00078477830482
Product UPC
07847783048

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA
  • 5-15R
Color Variations
  • Brown
Features
  • All Leviton Hospital Grade Receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high-abuse tolerance, including health care facilities, manufacturing plants and schools.
  • Code Compliant - Allows you to increase the number of receptacles in your facility without having to pull new wires
  • Durable - Impact and chemical resistant nylon cover and base
  • Easy Installation - Termination anchor holes for easy conductor wiring
  • Reliable - 10-Year Limited Warranty
