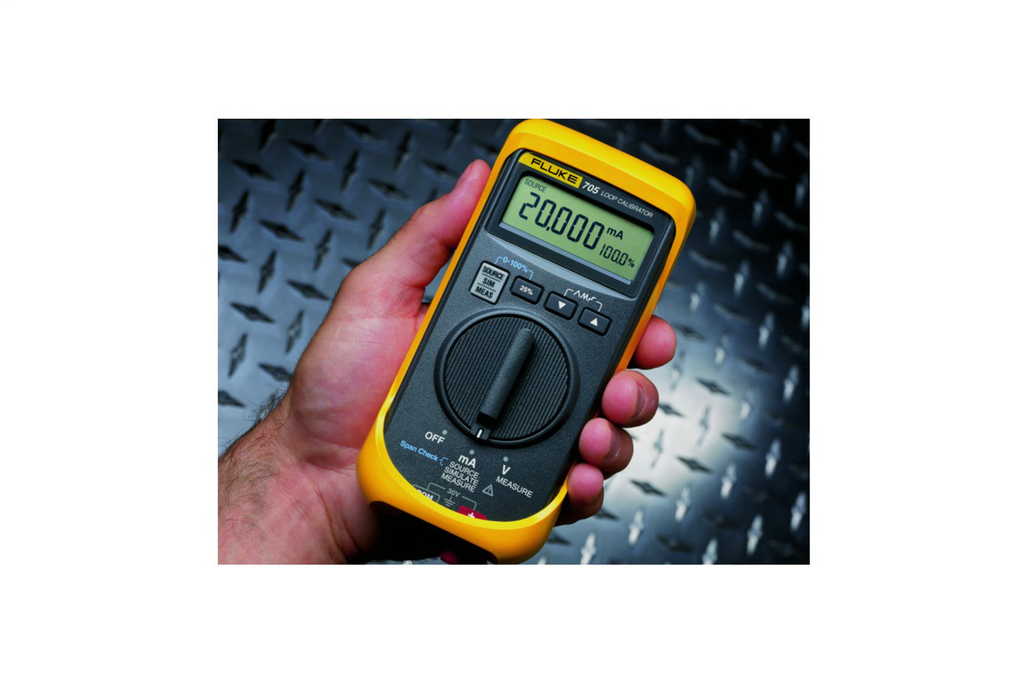

Fluke FLUKE-705 28 VDC 24 mA DC Loop Calibrator

Manufacturer: Fluke | Catalog # FLUKE-705 | Cooper Electric Part # 393567
$1,235.08/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet
The Fluke 705 Loop Calibrator is a cost-effective, integrated solution for calibration, repair and maintenance of current loops.

Technical Information

Applications
mA sourcing, simulation and measurement
Operating Temperature
-10 To 55 degrees C
Storage Temperature
-40 To 60 degrees C
Type
Loop Calibrator

Manufacturer Information

Brand
Fluke Corporation
Sub Brand
Fluke

General Product Info

12-Digit UPC
095969062565
GTiN
00095969062565
Product UPC
09596906256
Weight
340 g

Dimensions

Warranty Length
3 yr
Includes
  • AC70A Alligator Clips
  • C10 protective yellow holster with Flex-Stand™
  • Instruction sheet
  • TL75 safety-designed test lead set
  • NIST- traceable calibration report and data
Key Features
  • Powerful loop calibrator that provides a very cost effective, integrated solution for calibration, repair, and maintenance of milliamp loops
  • Provides simultaneous mA and % readout for quick, easy interpretation of readings.
  • Delivers mA accuracy of 0.02%
  • Features push button 25% steps for fast, easy linearity checks
Other Useful Features
  • mA sourcing, simulation and measurement
  • 0.02% accuracy and 0.001 mA resolution
  • Simultaneous mA and % of span display
  • Selectable step or ramp outputs
  • 24 V Loop supply with mA measure
  • 0-28 VDC measurement to check Loop Voltage
  • Easy battery exchange without opening the case
  • Includes span check for fast confirmation of zero and span.
  • Provides selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests.
  • Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
  • Runs on a single 9 V battery that is easily changed without breaking the calibration seal
  • Offers 0 - 20 mA or 4 - 20 mA default start up modes
  • Comes with a protective yellow holster with test lead storage and a three year warranty
Product Overview
  • Fluke 705 loop calibrator provides a cost-effective, integrated solution for calibrating milliamp loops
  • The Fluke 705 is a cost-effective, integrated solution for calibration, repair and maintenance of milliamp loops. It features a large display and simple, pushbutton interface for ease of use. Plus, it offers the other capabilities you need most to calibrate mA loops including:
  • And you get all of that in a compact case with a separate protective holster and a three year warranty.
