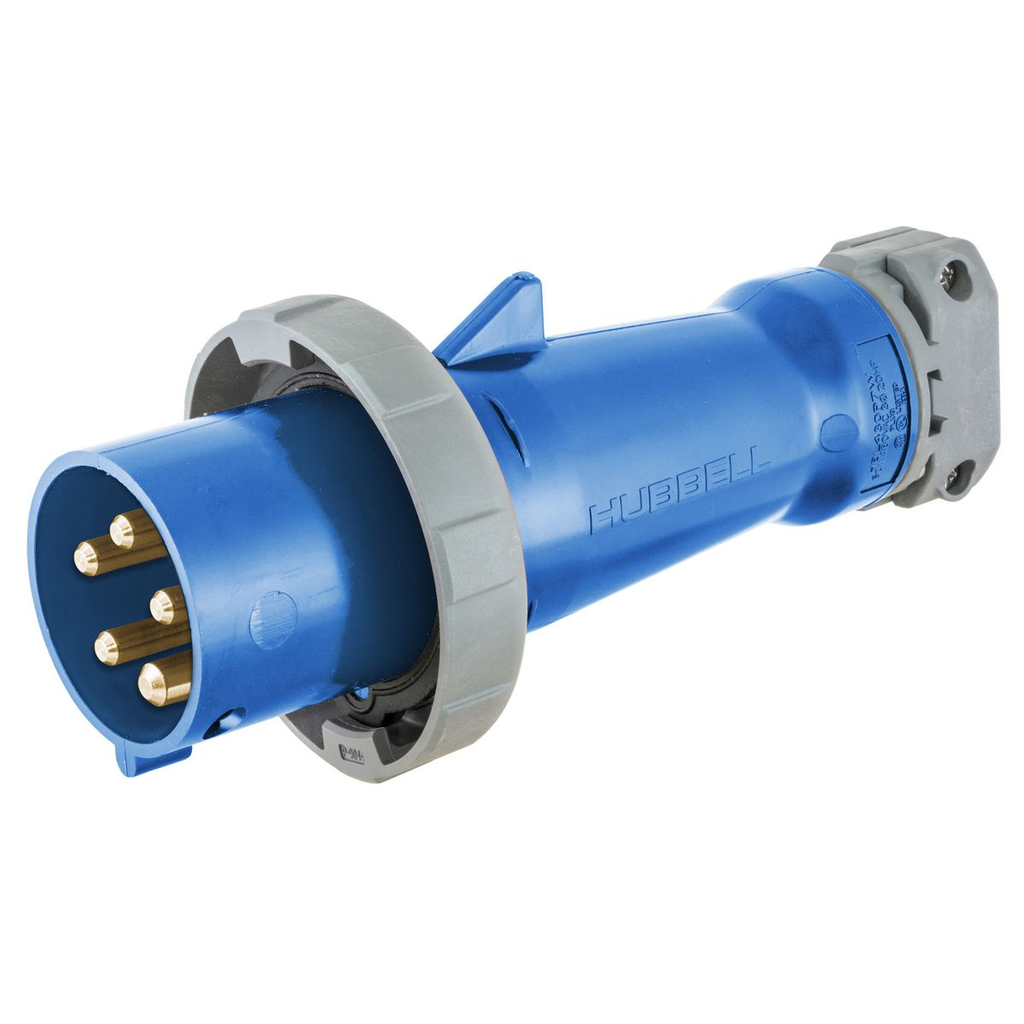

Hubbell HBL520P9W 20 Amp 120/208 Volt 4-Pole 5-Wire Blue Watertight IEC Pin and Sleeve Plug

Manufacturer: Hubbell Wiring Device | Catalog # HBL520P9W | Cooper Electric Part # 391401
$385.98/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Male, Plug, 20A 3-Phase Wye 120/208V AC, 4- Pole 5-Wire Grounding, Terminal Screws, Blue, Watertight

Technical Information

Amperage
20 Amp
Applications
High Ampacity Connections
Conductor Size
14-10 AWG
Cord Type
Portable
Current
20 Amp
Material
Plastic
Mounting Type
Cord
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,File LR280C,IEC 60309-1 IEC 60309-2,UL,UL 1686C2,UL Standard UL1682
Style
Standard Service
TC Connection
Pressure Terminal Screws
Type
Male, Straight
Voltage
120/208 Volt
Wire Count
4
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585405353
Color
Blue
Environmental Conditions
Watertight
GTiN
00783585405353
Product Series
HBL Heavy Duty
Product UPC
78358540535
Weight
1.2 lb

Dimensions

Height
4 Inch
Length
7.88 Inch
Width
4.2 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
USA
Features
  • Solid one-piece pins machined from solid brass
  • Gasketed sealing ring provides watertight seal
  • Raised collar surrounds each phase pin
  • Watertight
