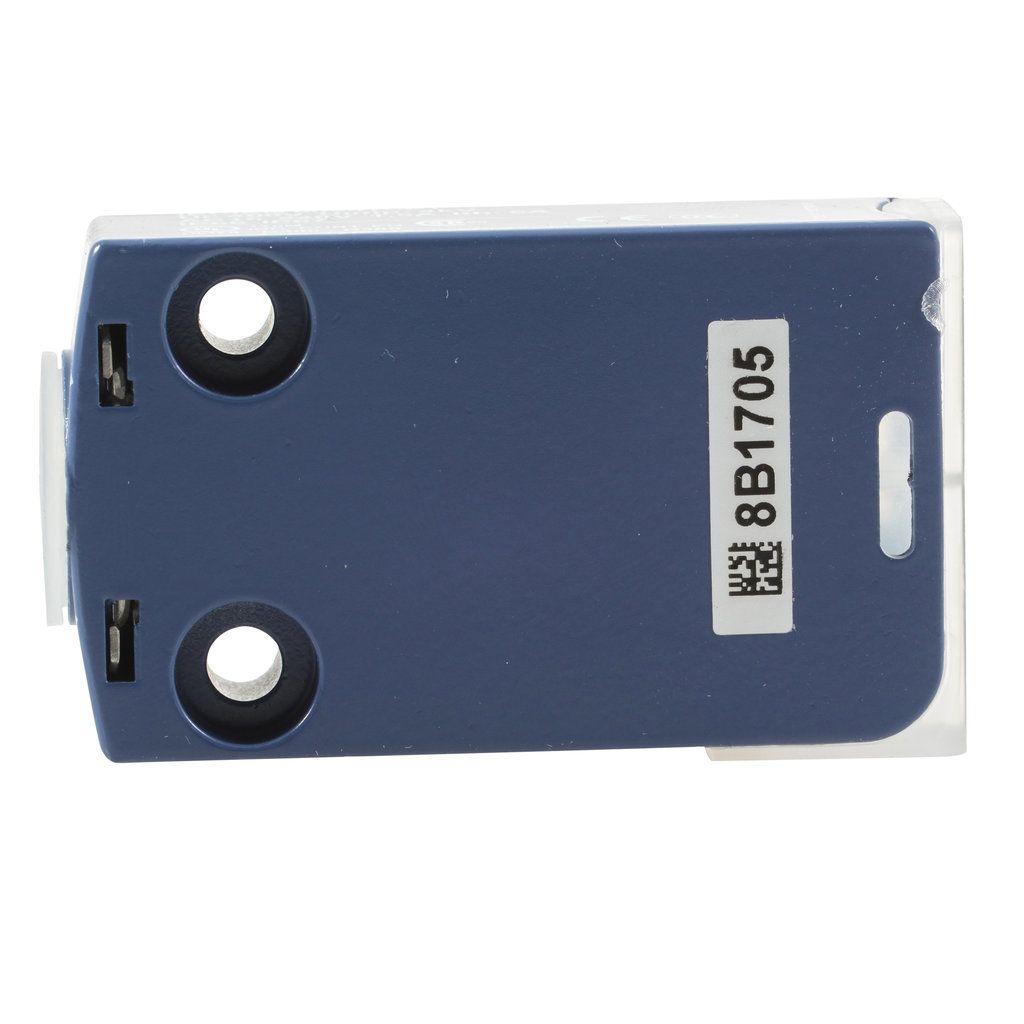

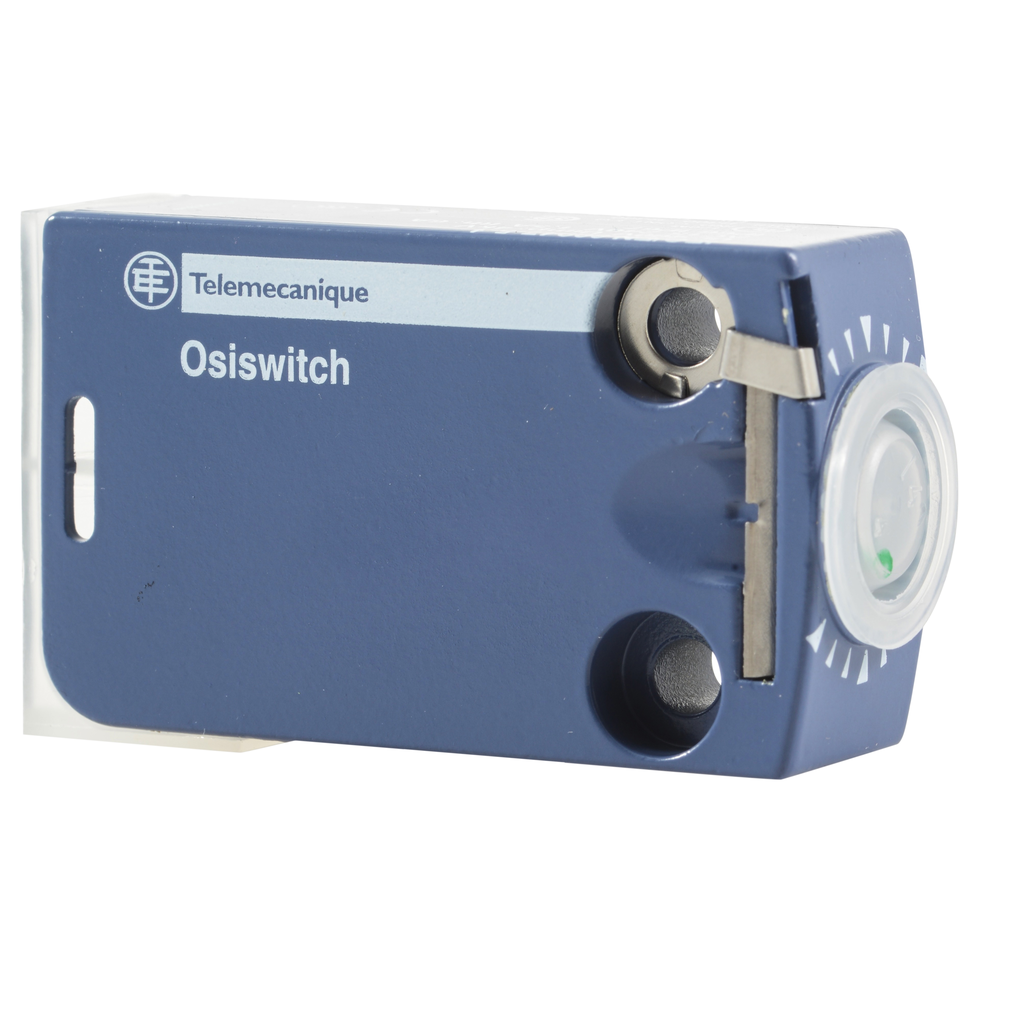

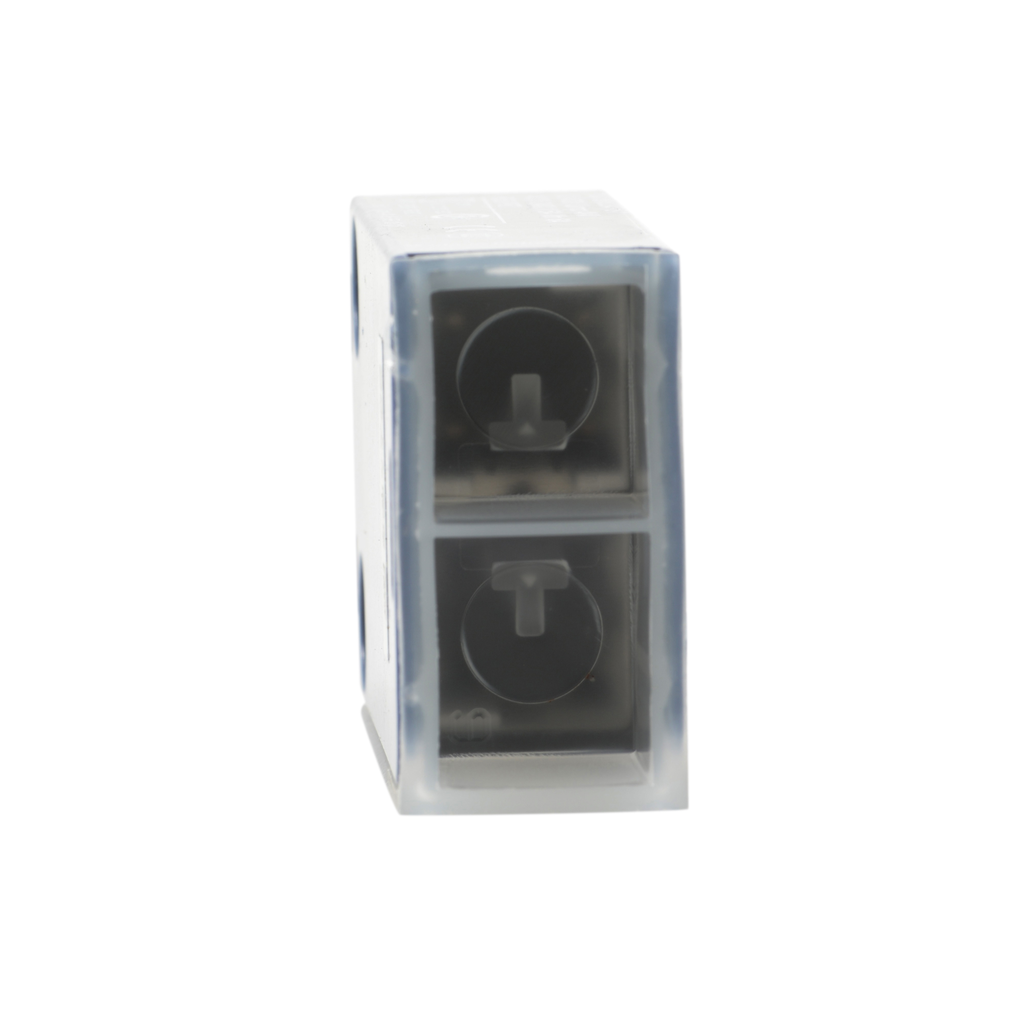

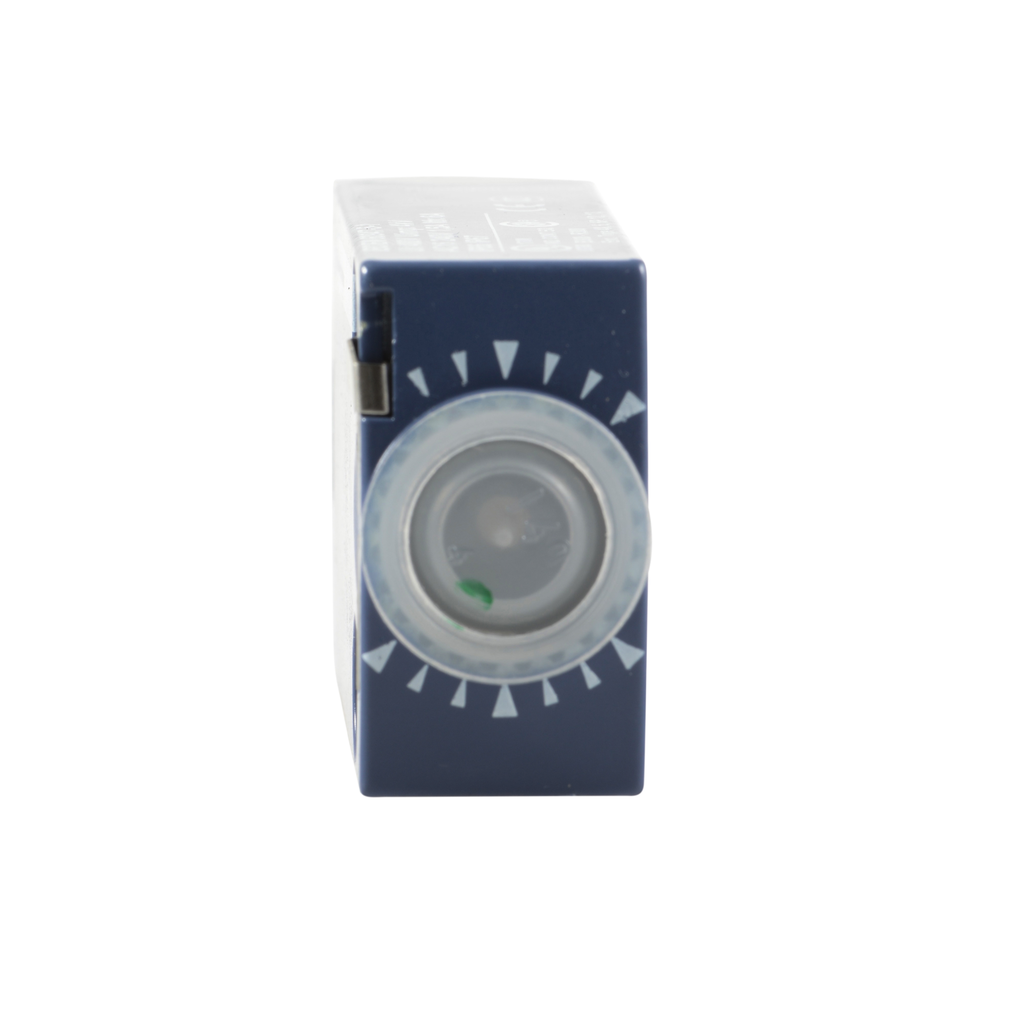

TES ZCMD21 Limit switch body, Limit switches XC Standard, ZCMD, 1NC+1 NO, silver, snap action

Manufacturer: TES Electric | Catalog # ZCMD21 | Cooper Electric Part # 391319
$48.69/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
This ZCMD21 body is part of the range of limit switches XC Standard, miniature design, metal, XCMD. The variable composition range expands the offer and choice among different actuators. This body with 2-pole contact is equipped with contact block NC + NO snap action.

Technical Information

Action
Snap action
Amperage
6 Amp
Applications
XCMD
Body Material
Zamak
Body Type
Plug-in body
Contact Configuration
1 NC + 1 NO
Contact Material
Silver Plated Contacts
Number of Poles
2 Pole
Operating Cycles
5000000 CYCLES, DC-13 120 V, 1 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 3 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 2 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Size
0.63 in
Storage Temperature
-40-70 degrees C
TC Connection
PLUG-IN WITHOUT PRE-CABLED CONNECTION
Type
Limit switch body

Manufacturer Information

Brand
Telemecanique
Sub Brand
OSISENSE

General Product Info

12-Digit UPC
389110299062
GTiN
03389110299069
Product UPC
78590166258

Dimensions

Depth
16 mm
Height
50-50 mm
Warranty Length
18 mth
Width
30 mm

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Country of Origin
Indonesia
