ABB STG10-G PVC CTD ZINC GROUND HUB

Manufacturer: Ocal / Thomas & Betts | Catalog # STG10-G | Cooper Electric Part # 391213
$873.81/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
Product Spec Sheet

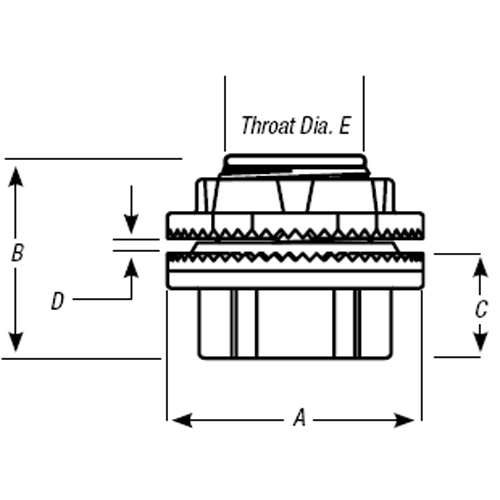

PVC Coated Zinc Grounded Hub with Thermoplastic Insulated Throat, Pipe Size 4 Inch/103 Metric, Overall Diameter 5.50 Inch/139.70 Millimeters, Maximum Panel Thickness 0.25 Inch/6.35 Millimeters, Throat Diameter 3.88 Inch/98.55 Millimeters, Nitrile Rubber (Buna-N) Sealing Ring, Dark Gray

Technical Information

Applications
Positively Bonds Conduit to Box or Enclosure
Material
Zinc
Size
4 in
Temperature Rating
105 degrees C
Trade Size
4 Inch
Type
Grounded

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508408756
Color
Gray
Finish
PVC Coated
GTiN
00704508408756
Product UPC
70450840875
Features
  • Insulated throat and sharper and deeper teeth.
  • Innovative sealing ring and groove.
  • Pressure sealing sleeves to protect the connection.
  • Hexagonal body and locknut design.
  • A minimum .040 in. (40 mil) PVC Coating is bonded to the exterior.
  • Coated with a nominal .002 in. (2 mil) blue urethane on the interior, before PVC Coating is applied.
Notes
  • Standard color is dark gray. Also available in white and light blue. Custom colors are also available upon request. Please contact Technical Services, 888-862-3289.
  • Dimensional values are of uncoated fittings.
