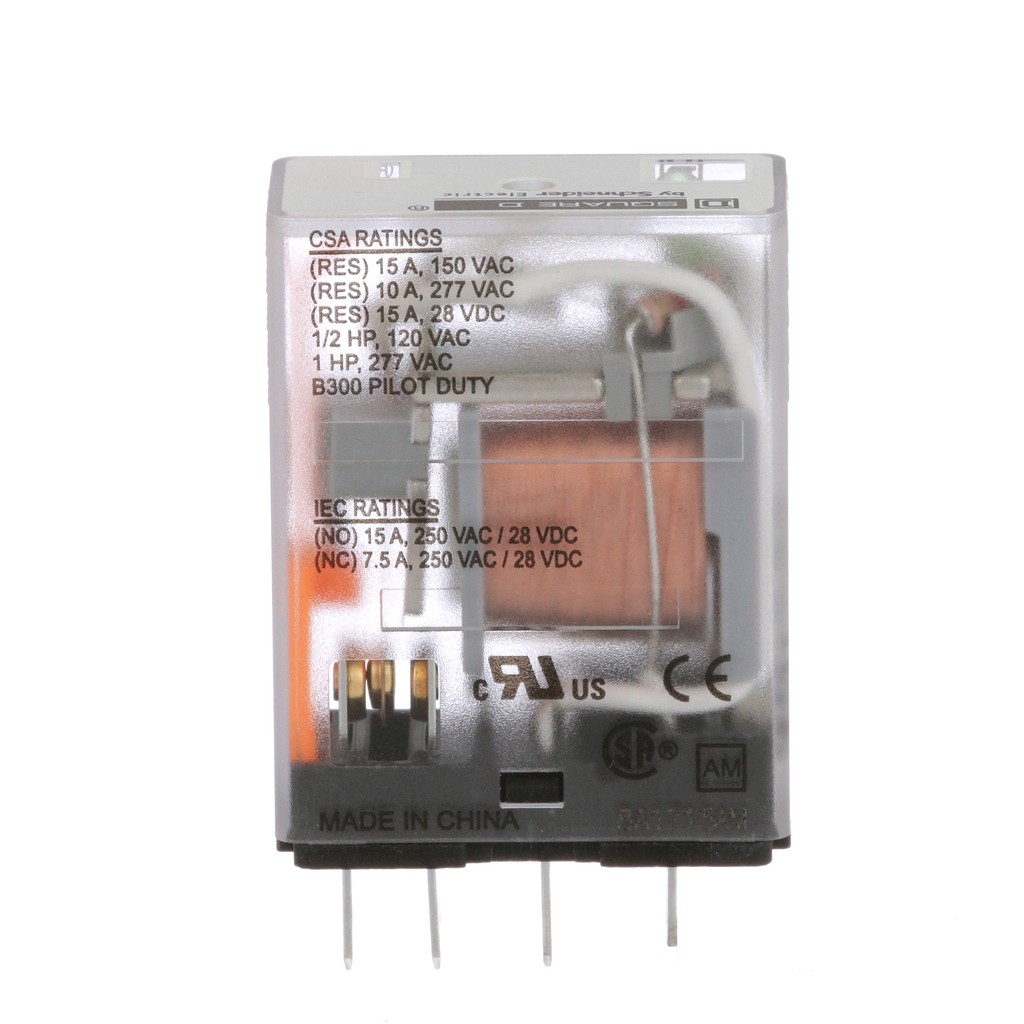

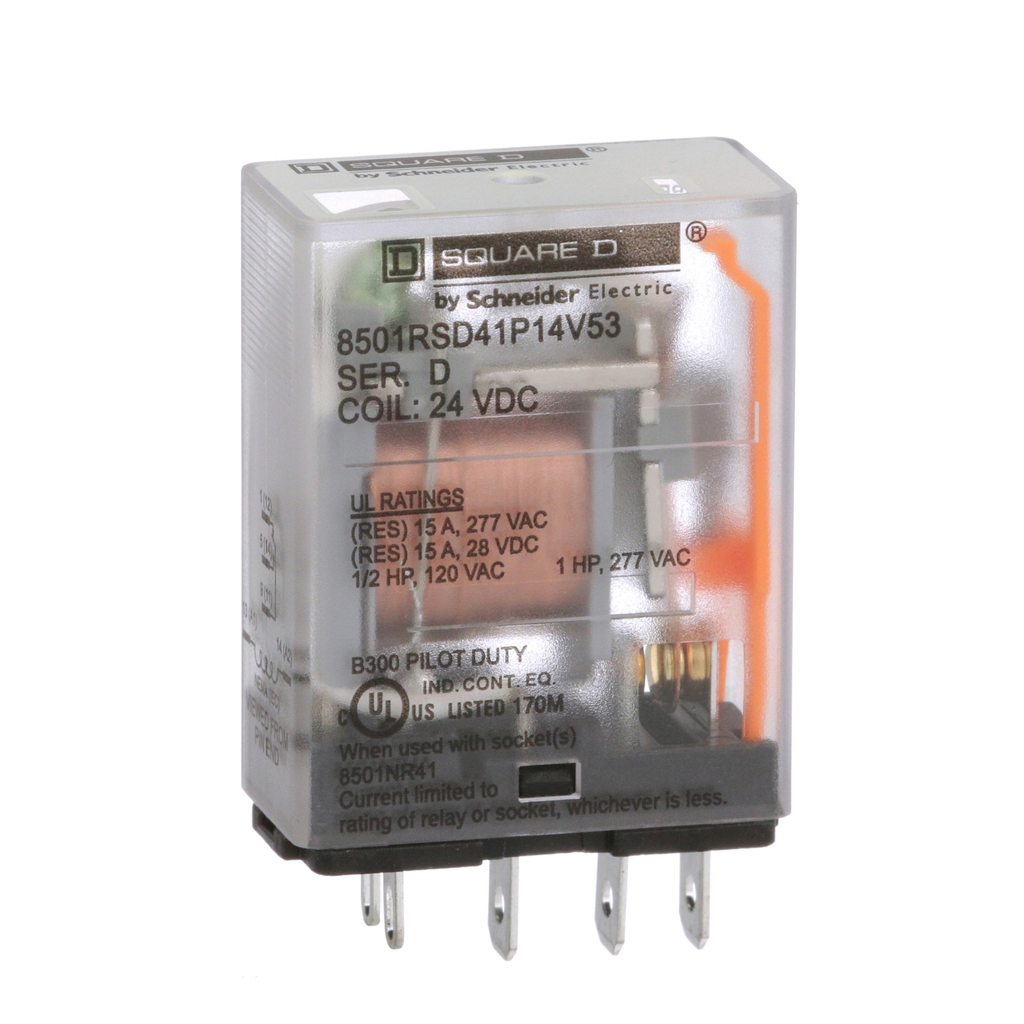

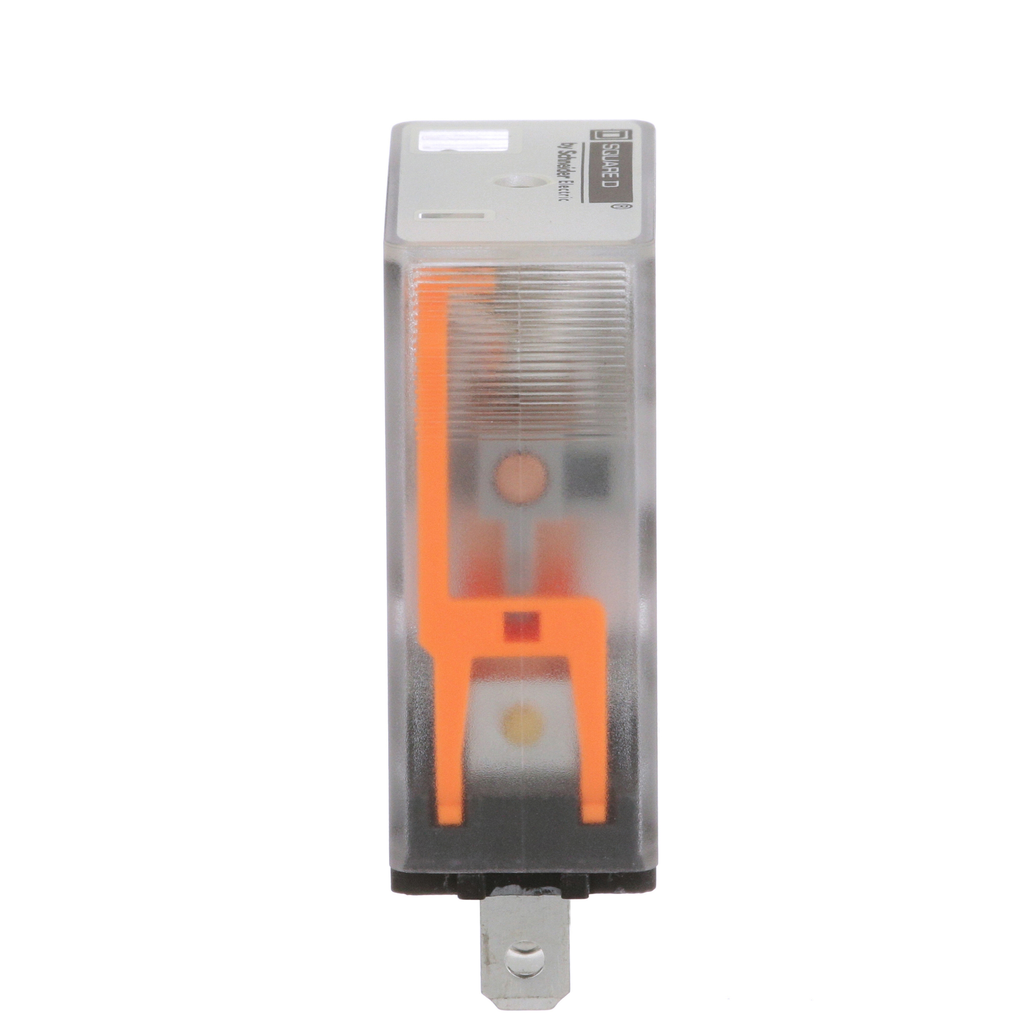

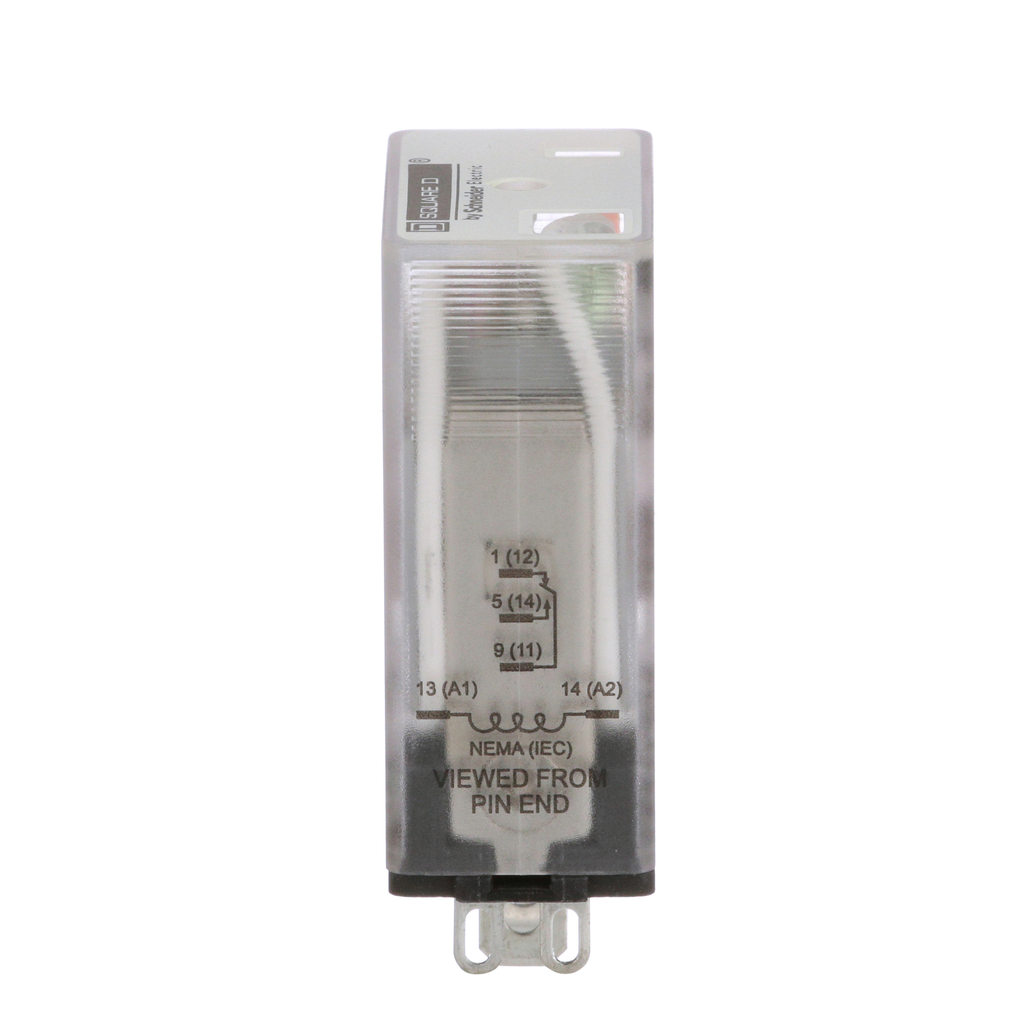

Square D 8501RSD41P14V53 24 VDC 12 Amp SPDT 1CO Socket Mount DC Operated Miniature Plug-In Relay

Manufacturer: Square-D / Schneider | Catalog # 8501RSD41P14V53 | Cooper Electric Part # 391111
$53.84/ea
ea
Log in or register to view your price, purchase history, and more!
Out of stock, please contact your sales representative for availability, pricing and lead times
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR41 or 8501NR41B relay socket. Relay is

Technical Information

Amperage
15 Amp
Applications
0.5 120 V AC-1 277 V AC,8501NR41
Contact Configuration
SPDT
Contact Material
Silver Alloy, Gold Flashed
Mounting Type
Socket
Operating Temperature
-40-131 Adegrees F
TC Connection
SPADE
Type
MINIATURE RELAY,SPDT,STANDARD

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901218524
GTiN
00785901218524
Product UPC
78590121852
Used With
8501NR41

Dimensions

Depth
1.65 in
Height
1.07 in
Warranty Length
18 mth
Width
0.55 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Certifications
CE,CSA,UL Listed,UL Recognized
Country of Origin
China
Rated Power In HP
  • 0.5 120 V AC
  • 1 277 V AC
Prop 65
  • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
Operating Time
  • 20 ms - pick-up
  • 20 ms - drop-out
Maximum Switching Voltage
  • 300 V AC
  • 30 V DC
UC Control Circuit Voltage
  • 24 V DC
Accessories
  • 8501NR41
  • 8501NR41B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Market Segmentation
  • Commercial
  • Industrial
Persona Type Names
  • Charge Point Operator
  • End User
  • Contractor
  • Original Equipment Manufacturer
  • OEM - Control Panelbuilder
  • Panel Builder
  • Electrician
  • System Integrator
  • IT Channel Partner
Accessory Products
  • 8501NR41
  • 8501NR41B
  • 9080MH320
  • 9080MH339
  • 9080MH220
  • 9080MH239
  • 9080MHA10
Persona Type Ids
  • BM9
  • EU
  • LC
  • OM
  • OM8
  • PB
  • SC
  • SI
  • VR
Market Segmentation Id
  • COMMERCIAL
  • INDUSTRIAL
Local Signalling
  • green indicator relay energised LED
Rated Breaking Capacity
  • 3 A 120 V AC inductive control circuit UL 508
  • 3 A 120 V AC inductive c
